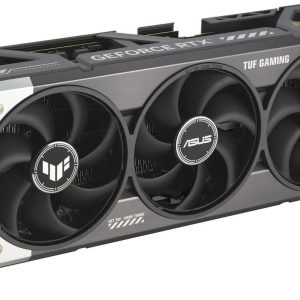

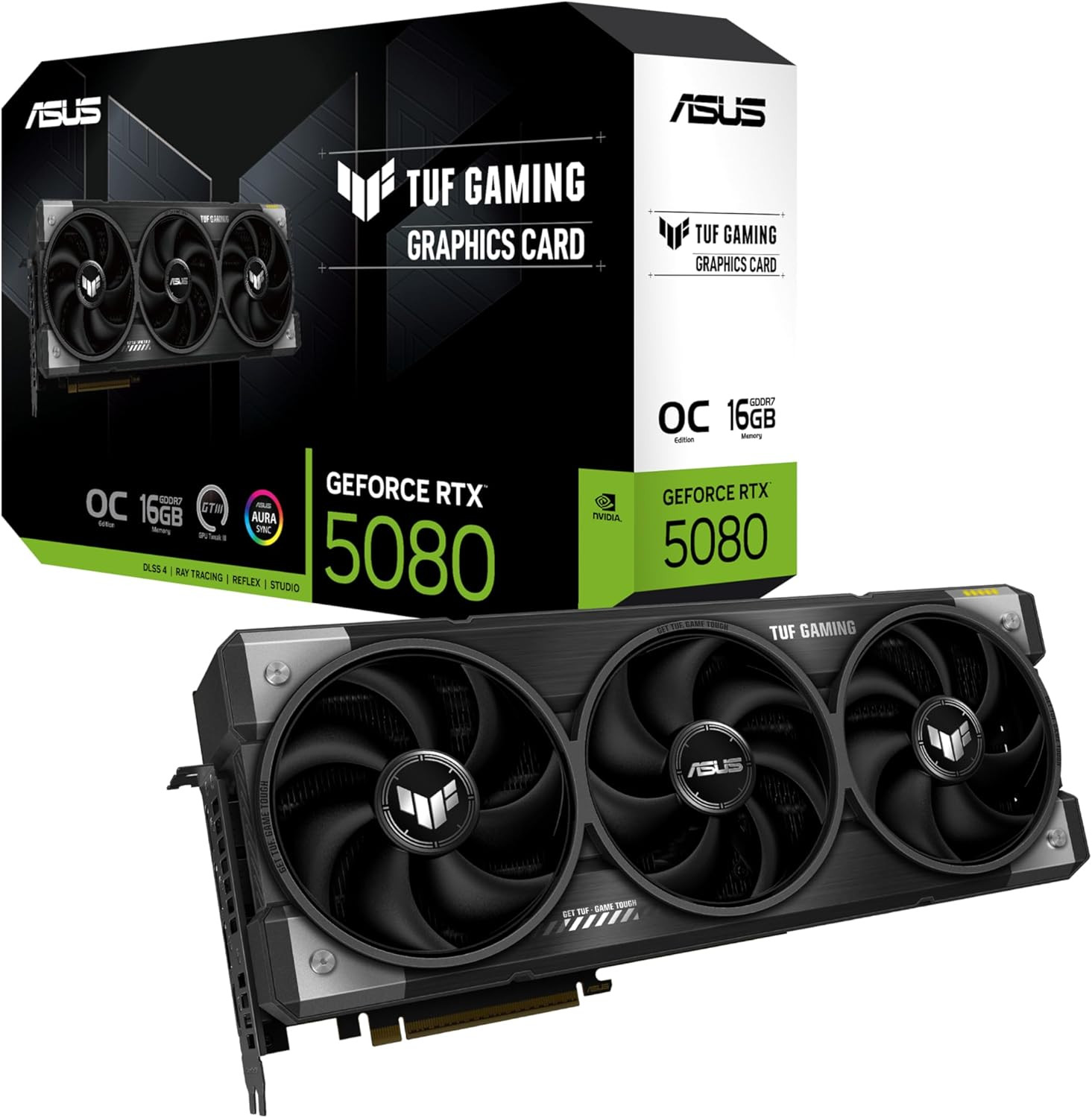

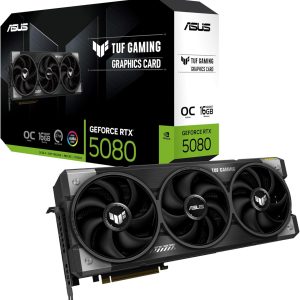

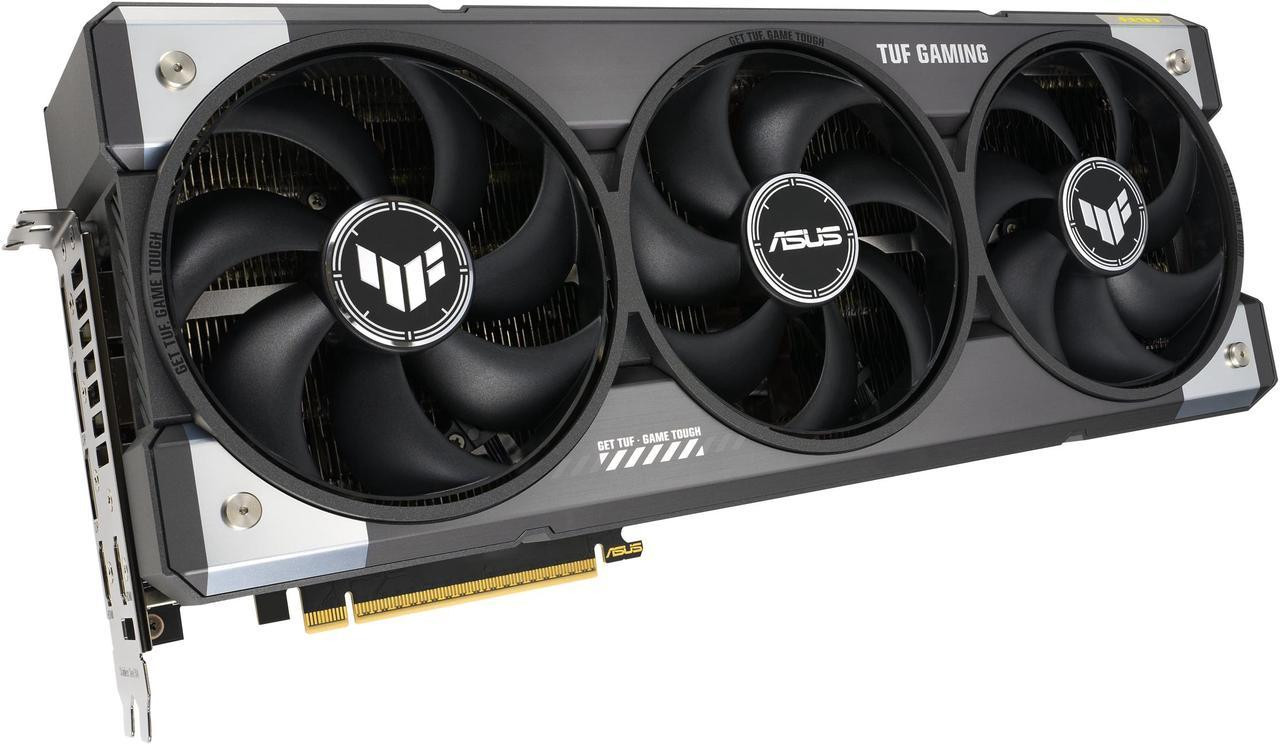

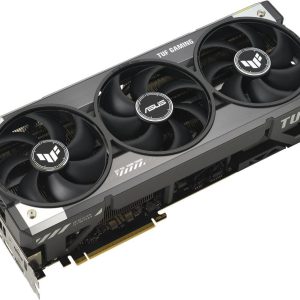

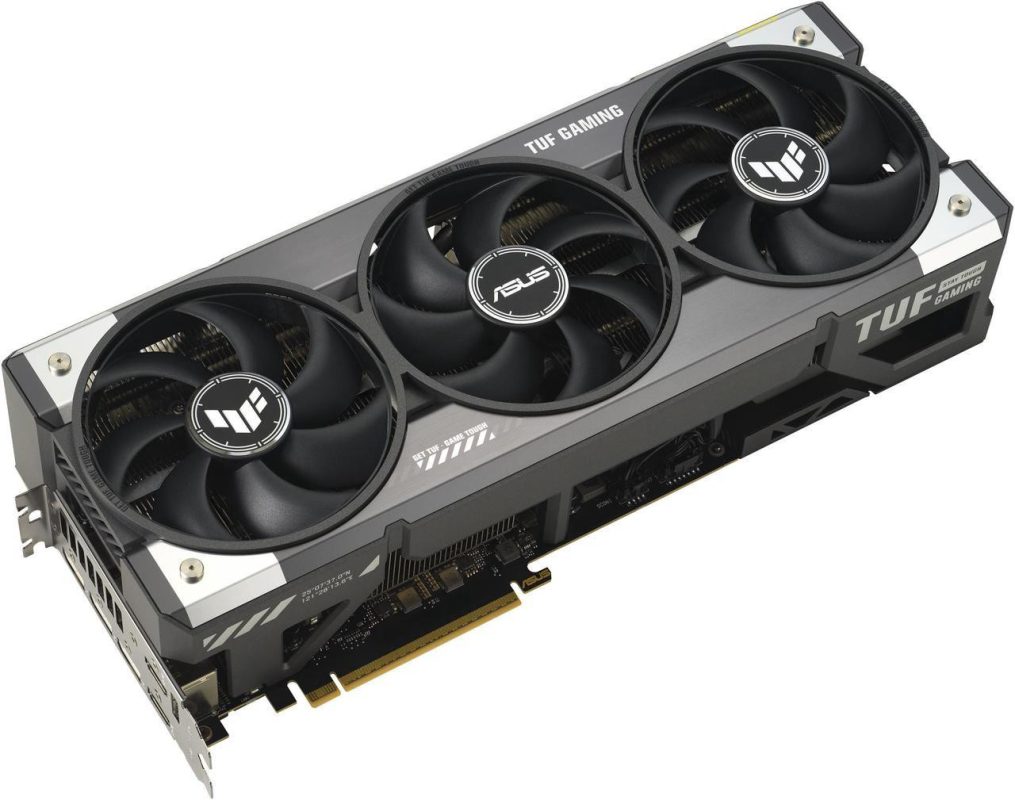

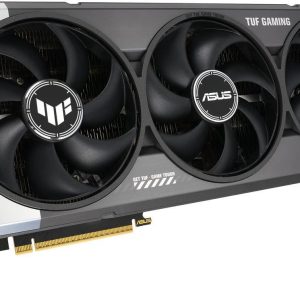

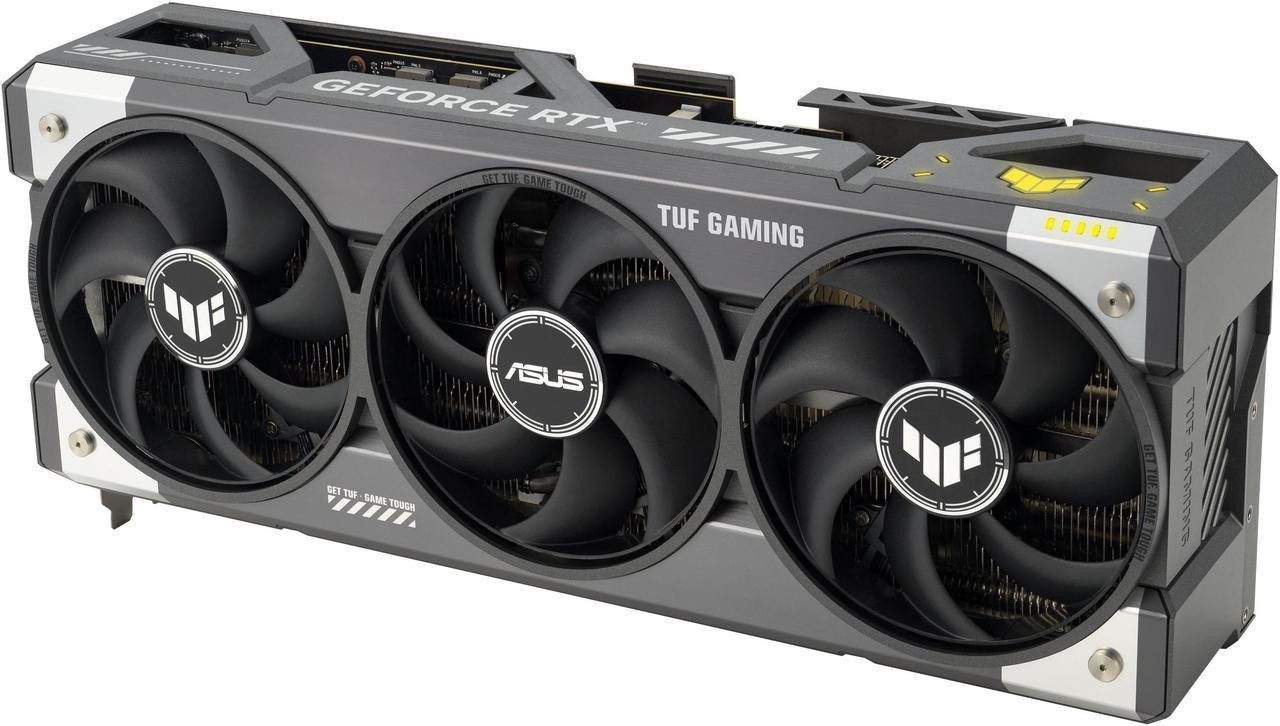

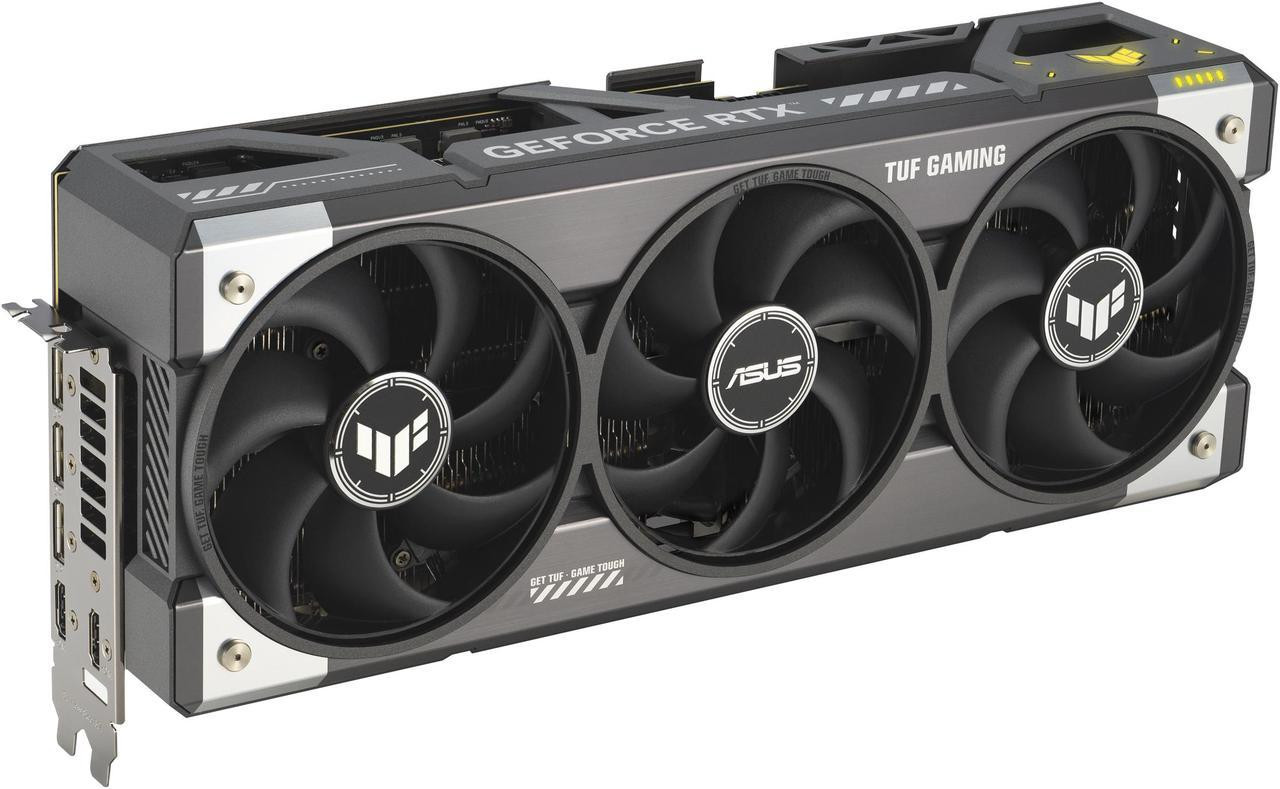

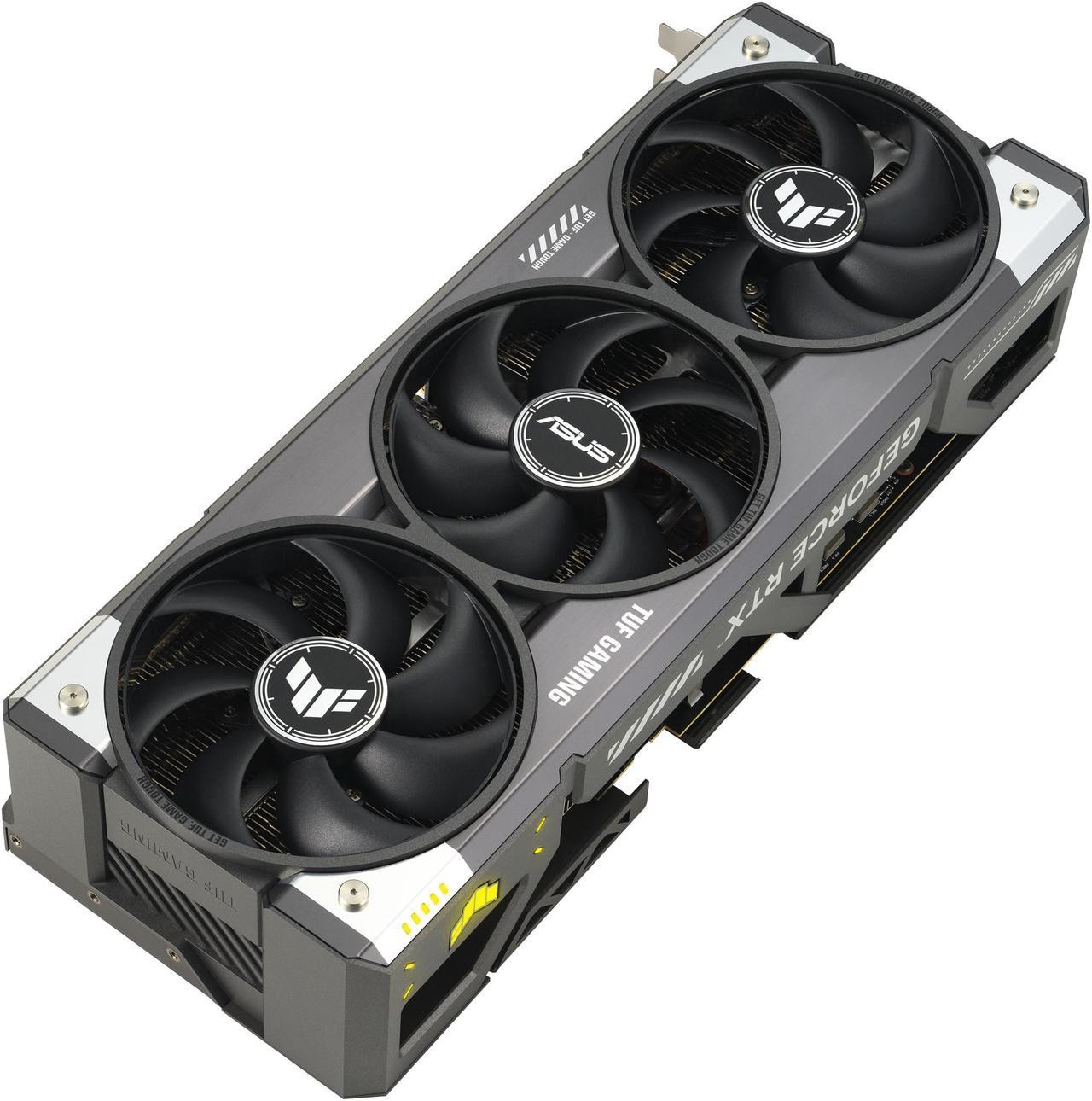

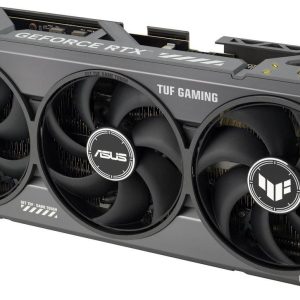

Model : TUF-RTX5080-O16G-GAMING
Graphic Engine : NVIDIA® GeForce RTX™ 5080
AI Performance : 1858 TOPs
Bus Standard : PCI Express 5.0
OpenGL : OpenGL®4.6
Video Memory : 16GB GDDR7
Engine Clock :
OC mode: 2730 MHz
Default mode: 2700 MHz (Boost Clock)
CUDA Core : 10752
Memory Speed : 30 Gbps
Memory Interface : 256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface :
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support : 4
NVlink/ Crossfire Support : No
Accessories :
1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adapter Cable (1 to 3)?
Software : ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions :
348 x 146 x 72 mm
13.7 x 5.7 x 2.8 inch
Recommended PSU : 850W
Power Connectors : 1 x 16-pin
Slot : 3.6 Slot
AURA SYNC : ARGB
Note : * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.

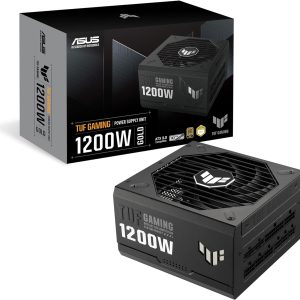

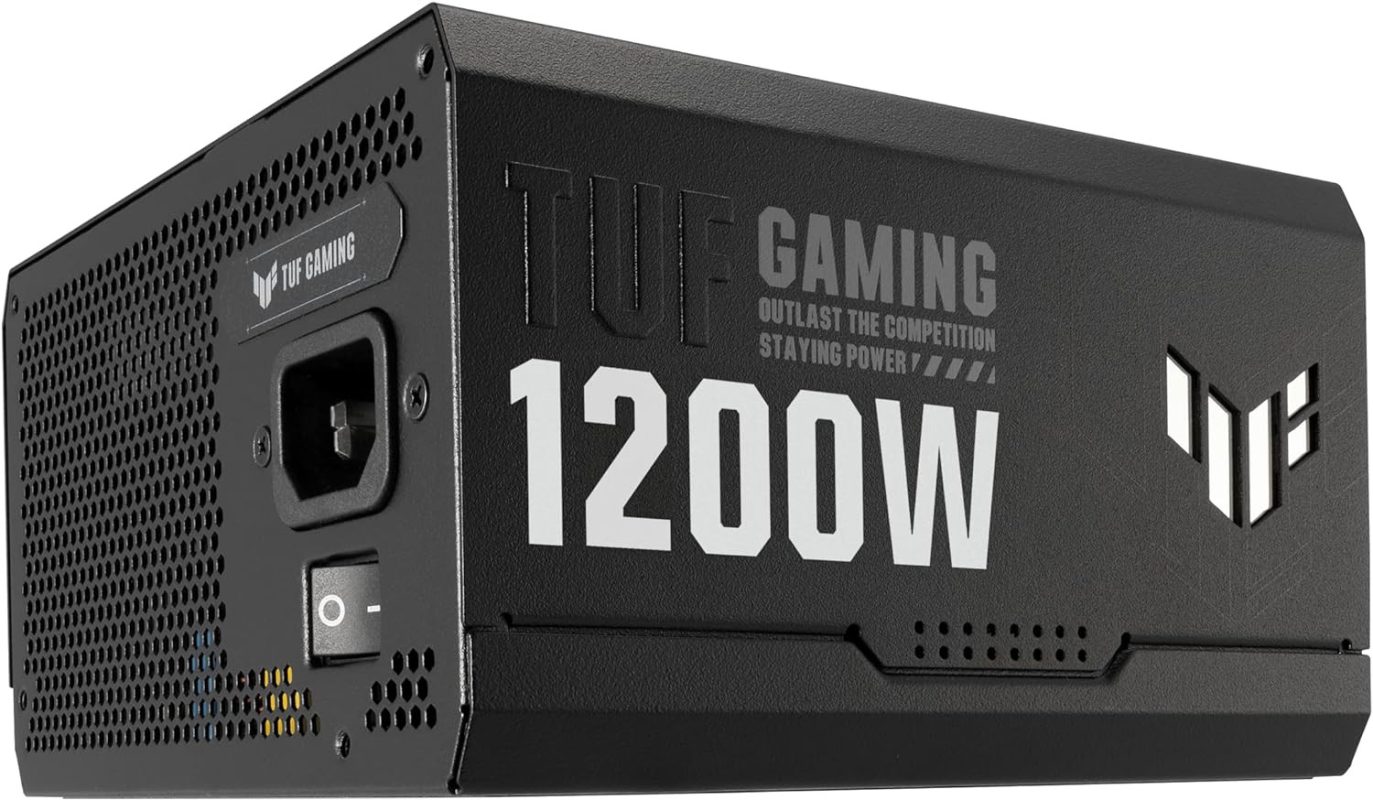

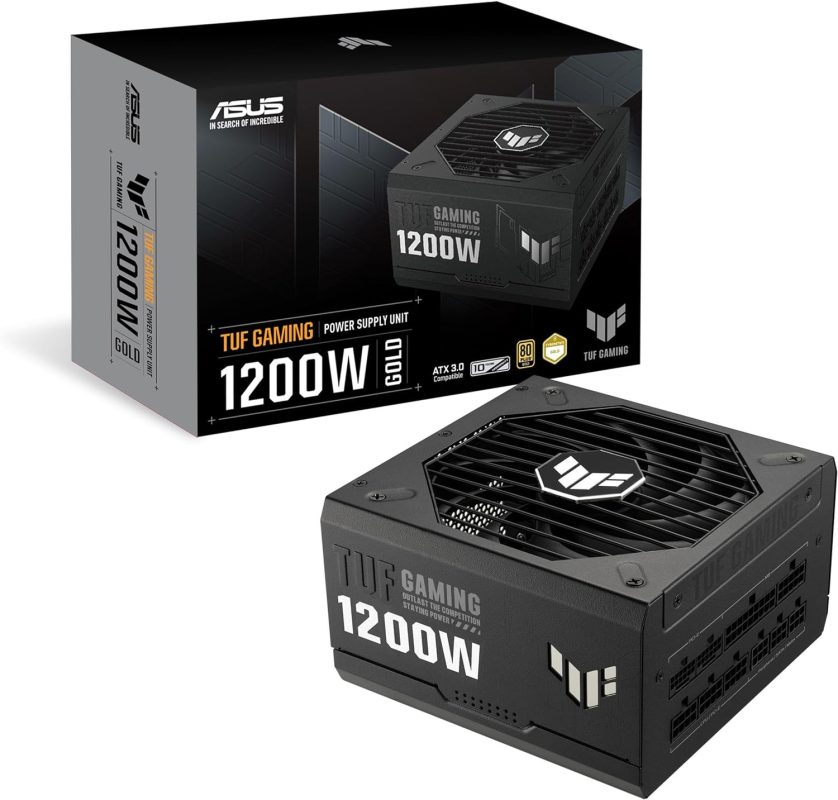

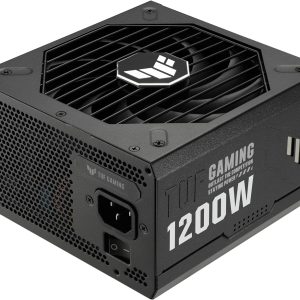

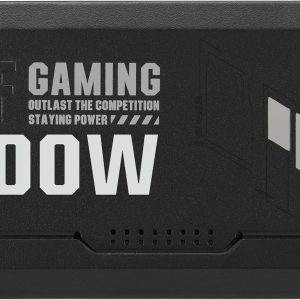

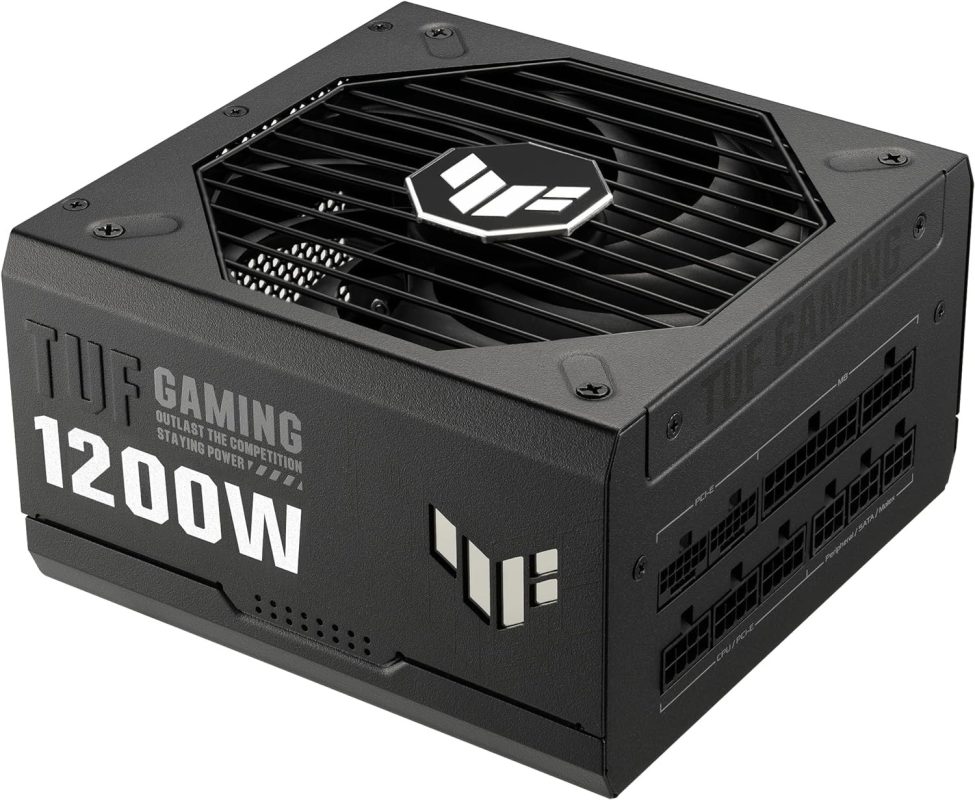

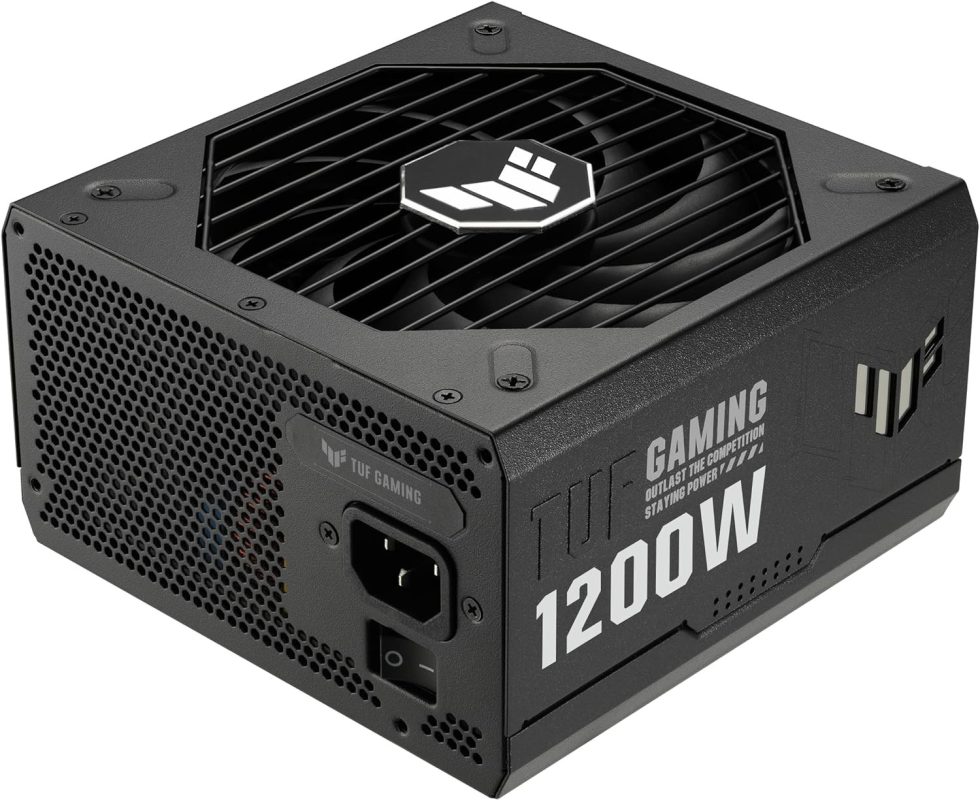

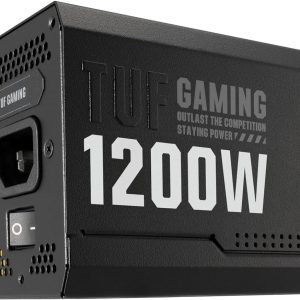

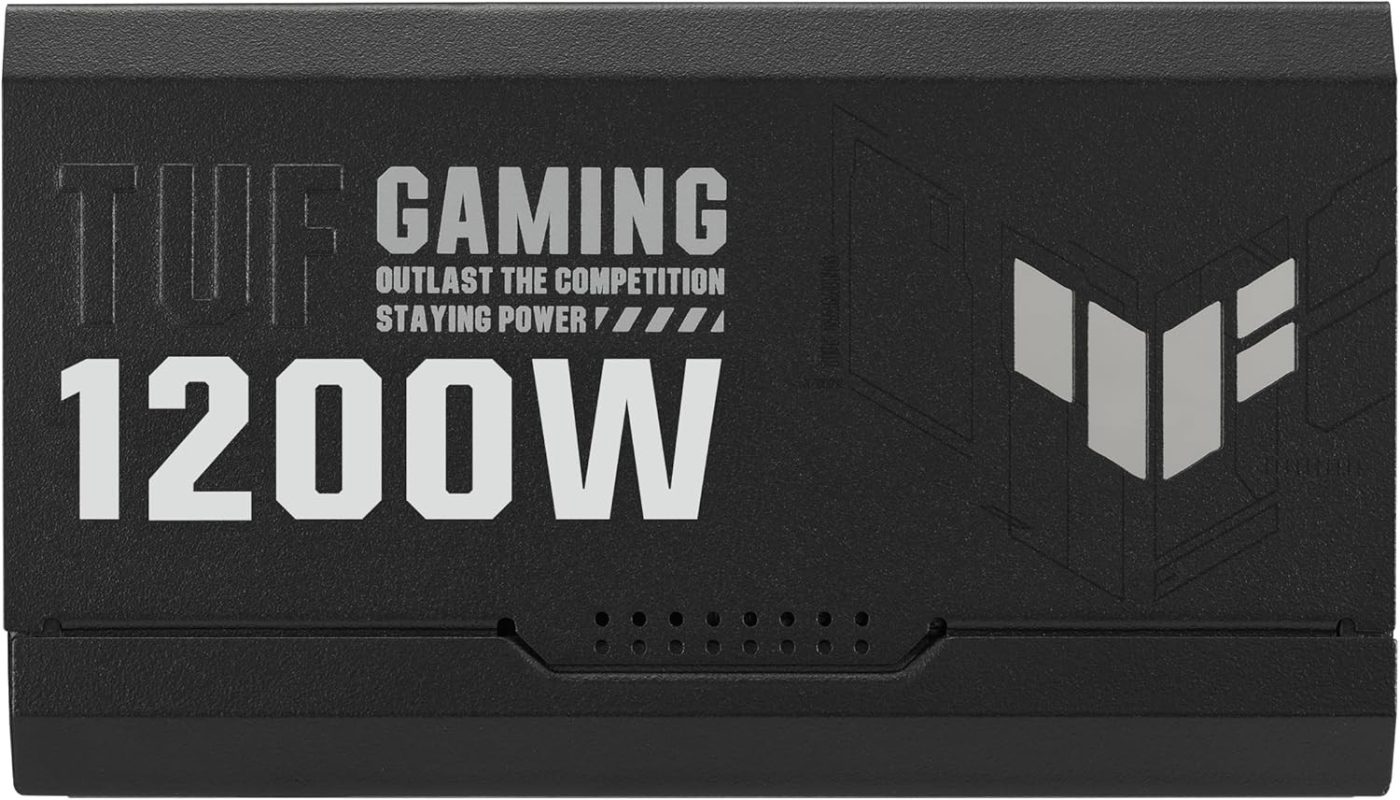

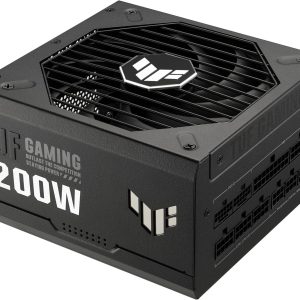

TUF Gaming 1200W Gold
Intel Form Factor : ATX12V
PFC Type : Active PFC
ATX Standard : ATX 3.1
Dimensions : 150 x 150 x 86 mm
Efficiency : 80Plus Gold
MTBF : >120,000 hrs @ 40°C
Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS
AC Input Range : 100-240Vac
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
Maximum Load : 25A25A99A 0.8A 3A
Combined Load : 130W 130W 1188W 9.6W 15W
Total Output : 1200W
Cable Connectors :
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents :
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 2 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight : 2.66kg (single PSU)
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
