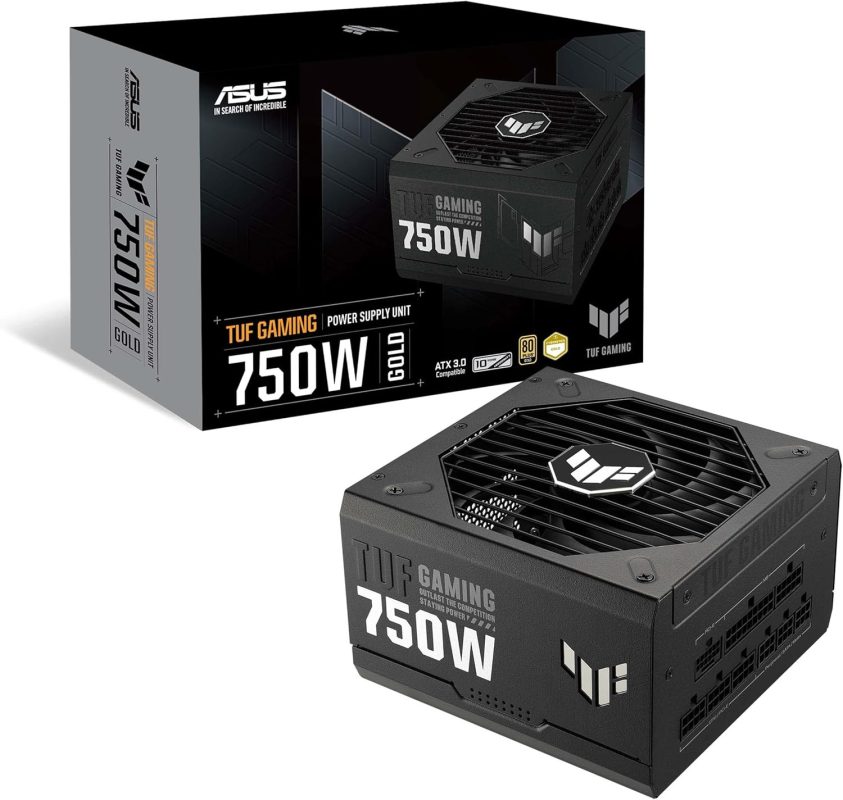

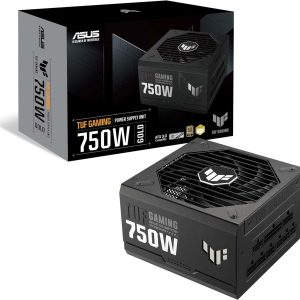

Asus TUF Gaming 750W Gold ATX 3.0 Axial-Tech Fan Power Supply PSU

Model – TUF Gaming 750W Gold
Intel Form Factor – ATX12V
PFC Type – Active PFC
ATX Standard – ATX 3.0
Dimensions – 150 x 150 x 86 mm
Efficiency – 80Plus Gold
MTBF >120,000 hrs @ 40°C
Protection Features – OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials – ROHS
AC Input Range – 100-240Vac
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load – 25A25A62A 0.8A 3A
Combined Load – 130W 130W 744W 9.6W 15W
Total Output – 750W

Cable Connectors –
MB 24/20-pin x 1
CPU 4+4-pin x 2

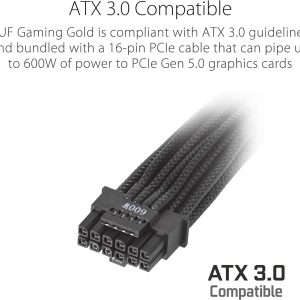

PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

Package Contents –
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Weight – 2.38kg (single PSU)

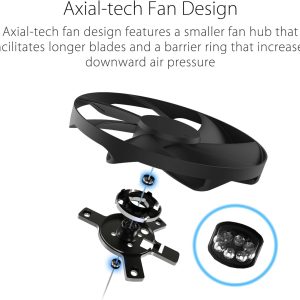

0dB Technology – Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button – No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
