Model

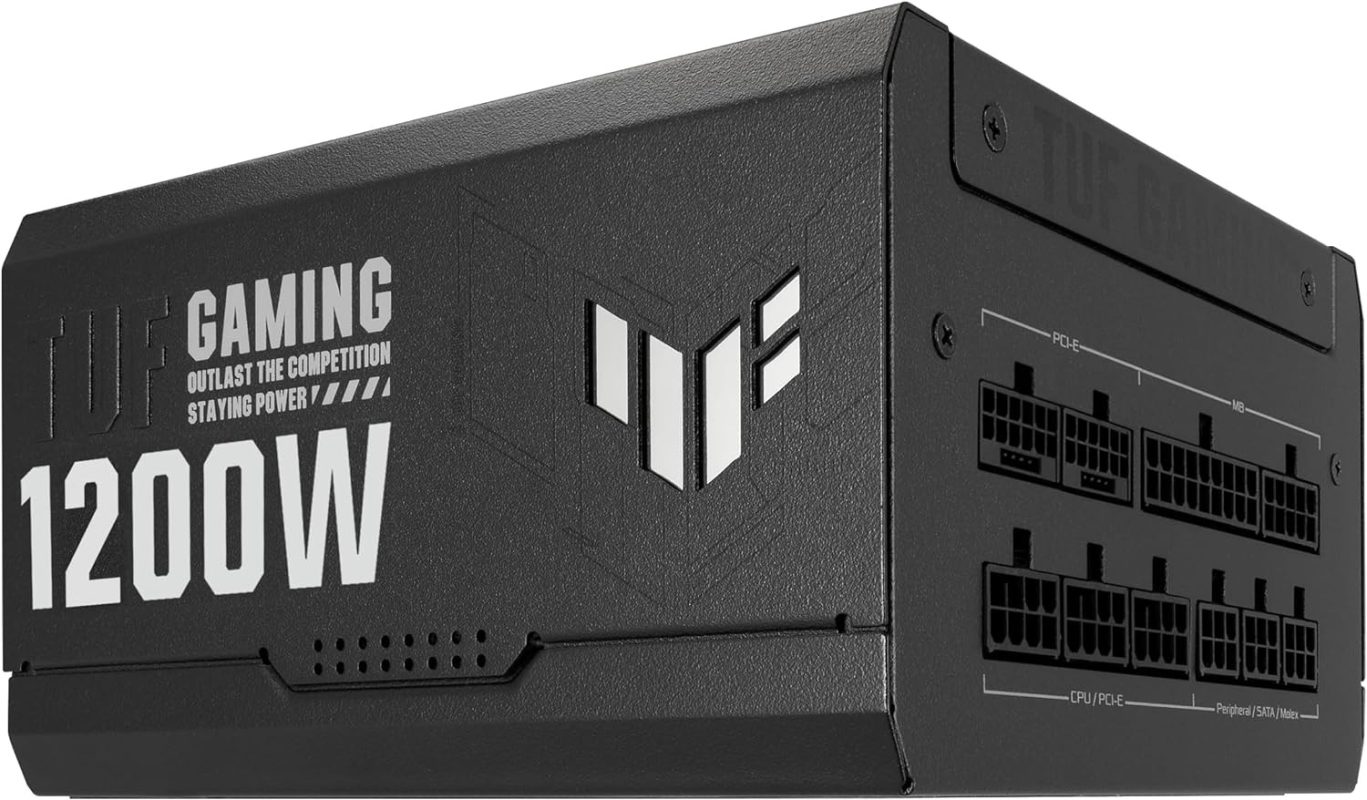

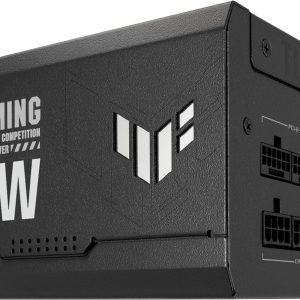

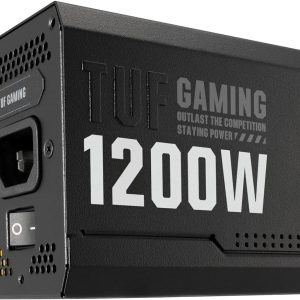

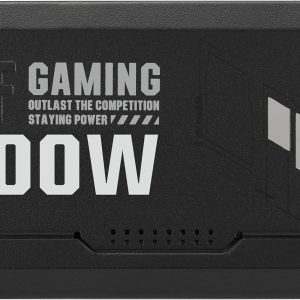

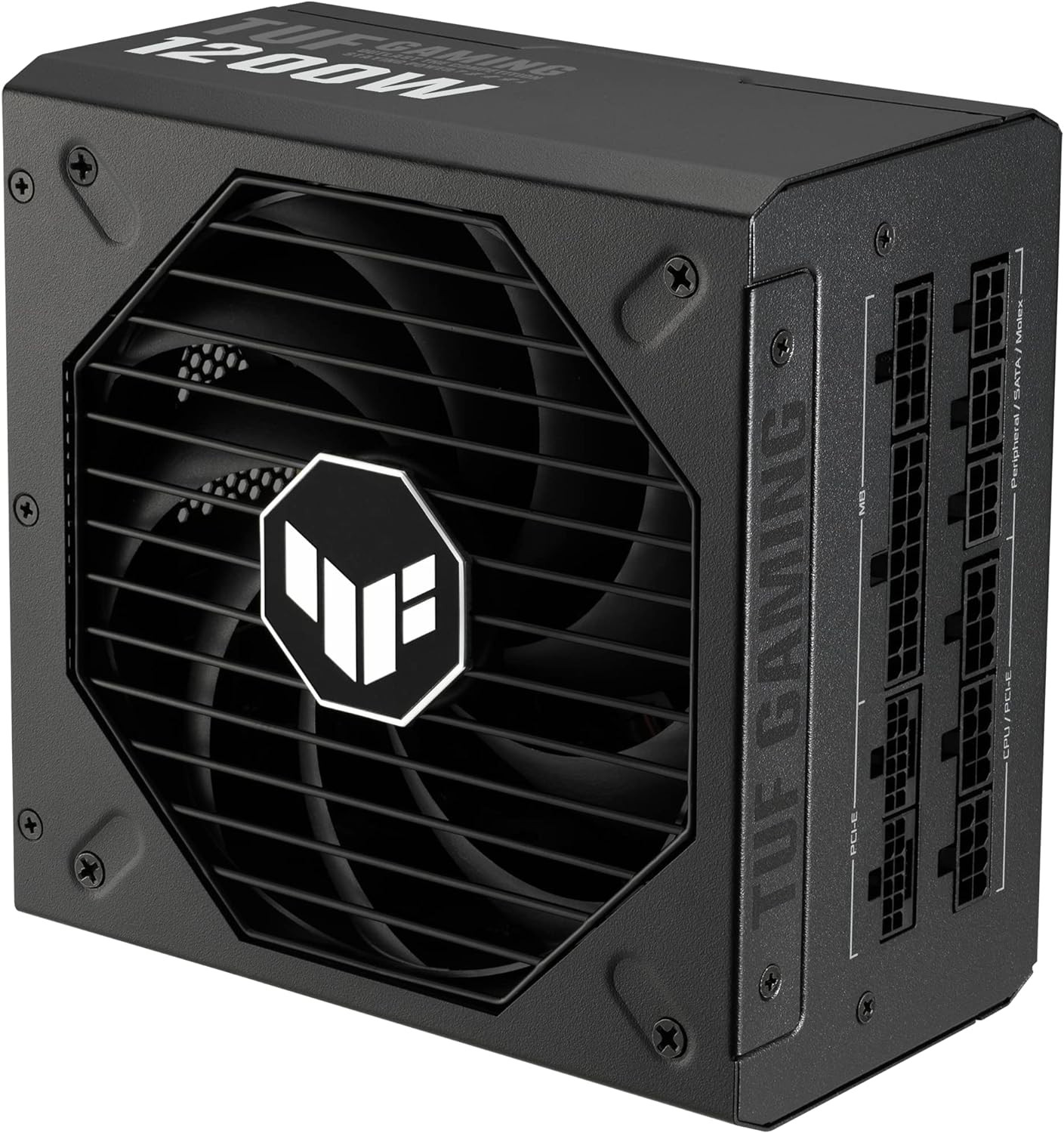

TUF Gaming 1200W Gold
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.0
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS

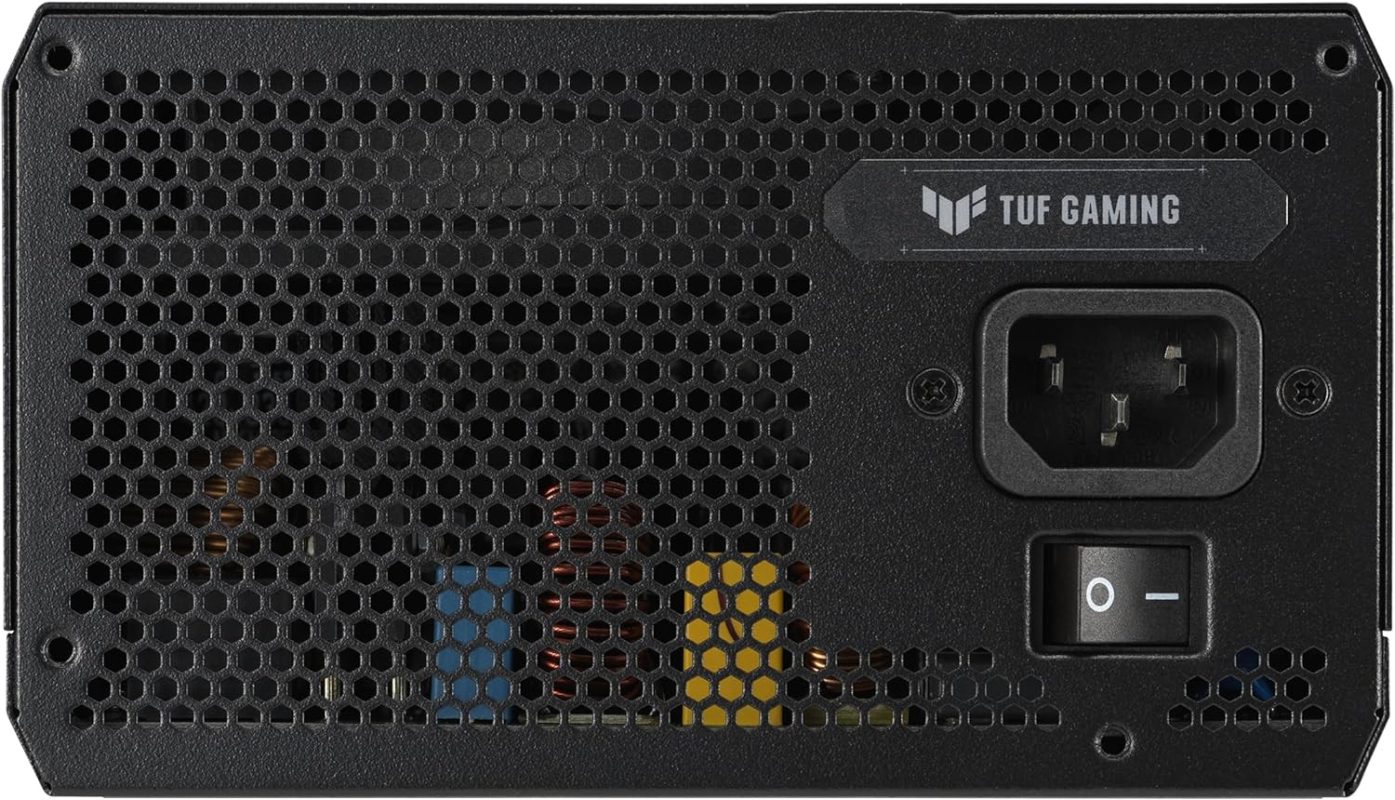

AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A25A99A 0.8A 3A
Combined Load
130W 130W 1188W 9.6W 15W
Total Output
1200W

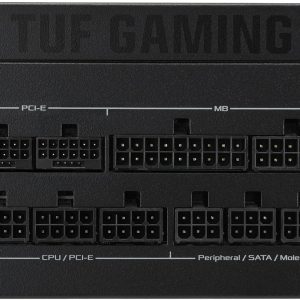

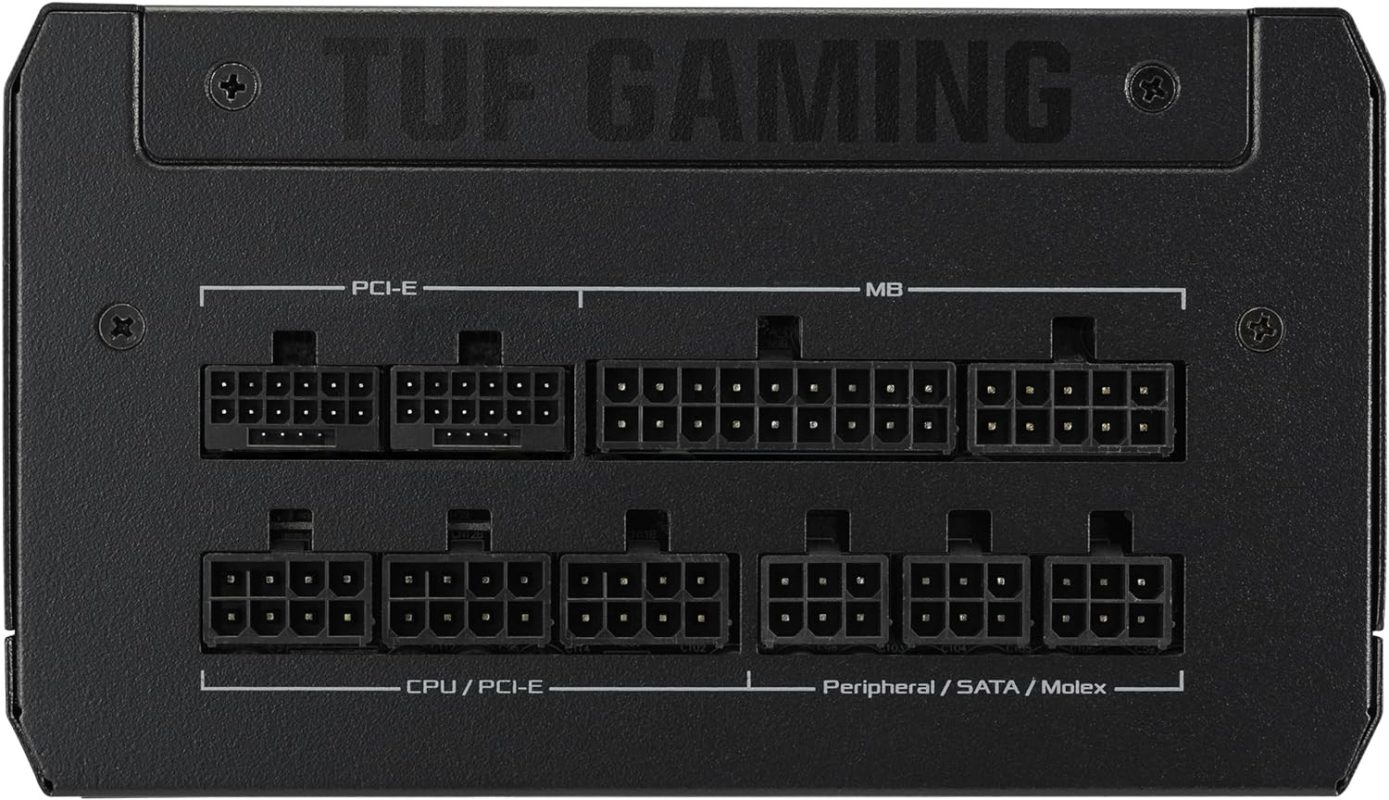

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

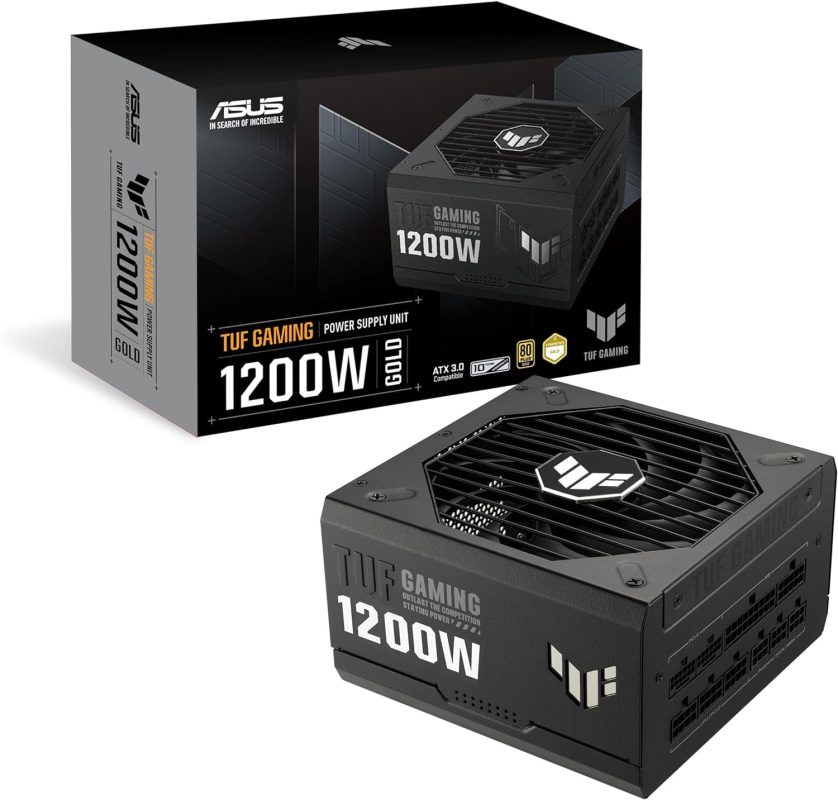

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 2 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight
2.66kg (single PSU)

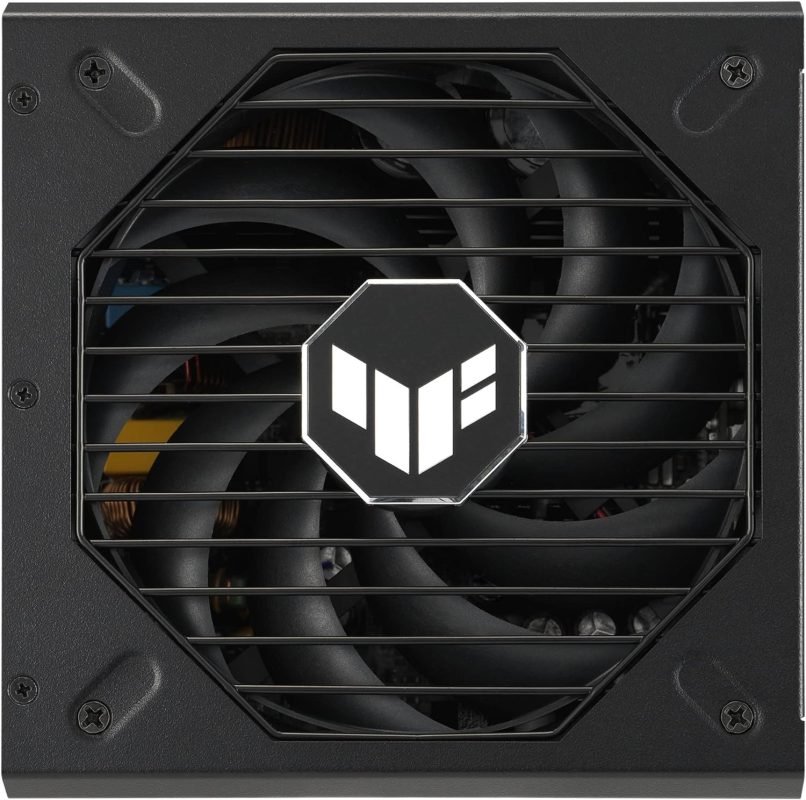

0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
