Model Name

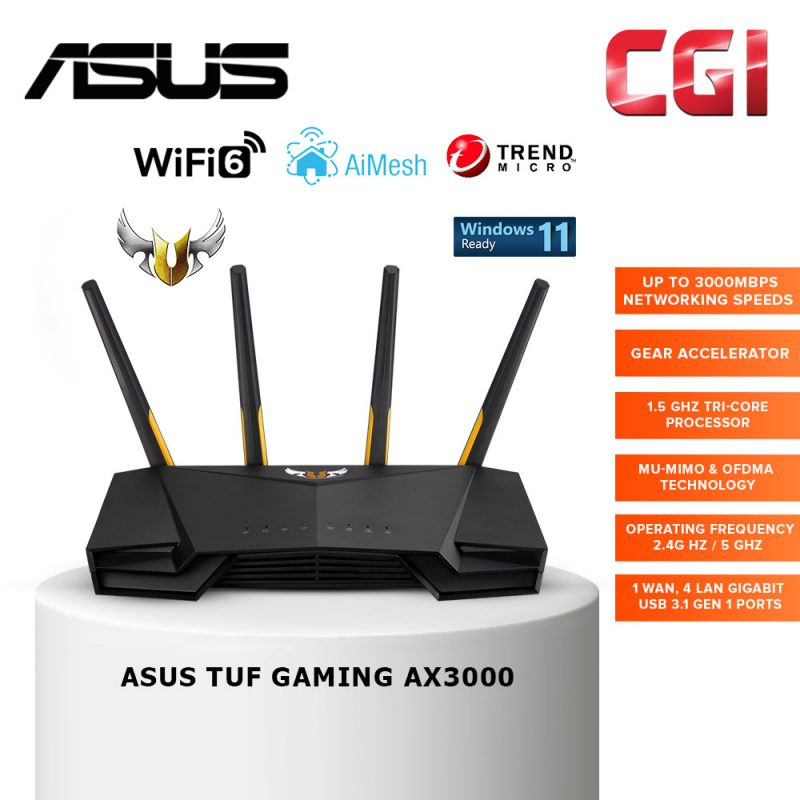

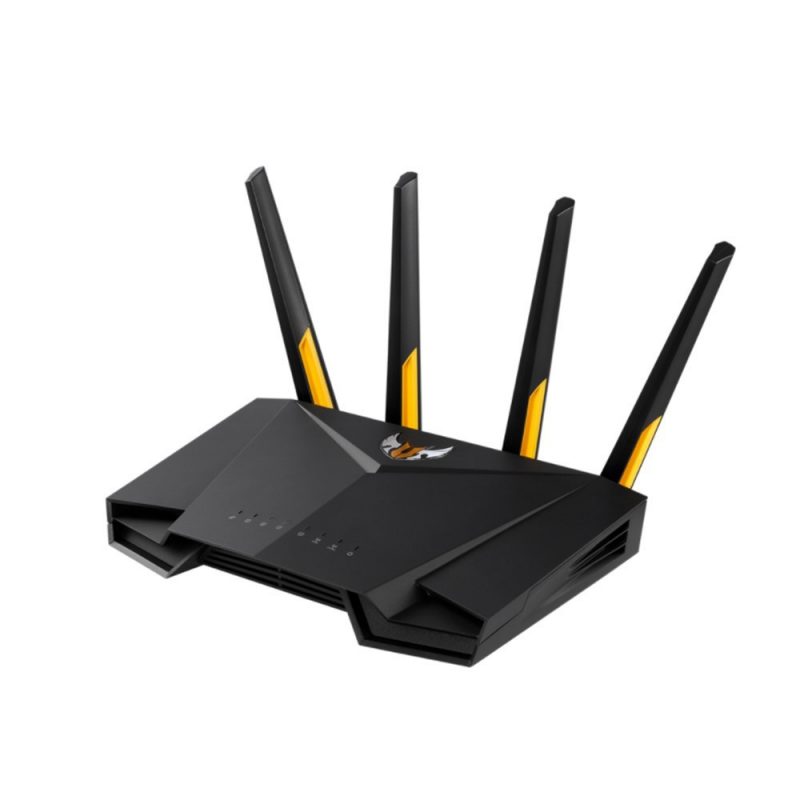

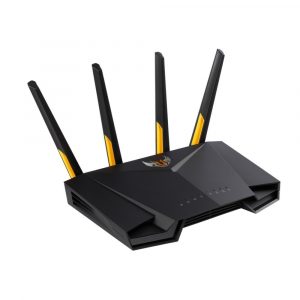

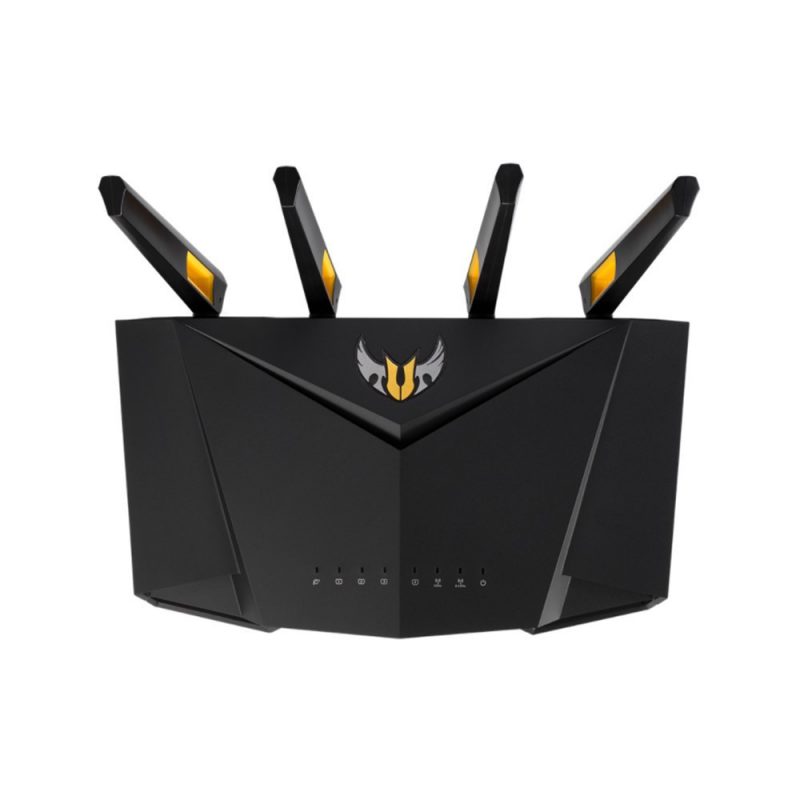

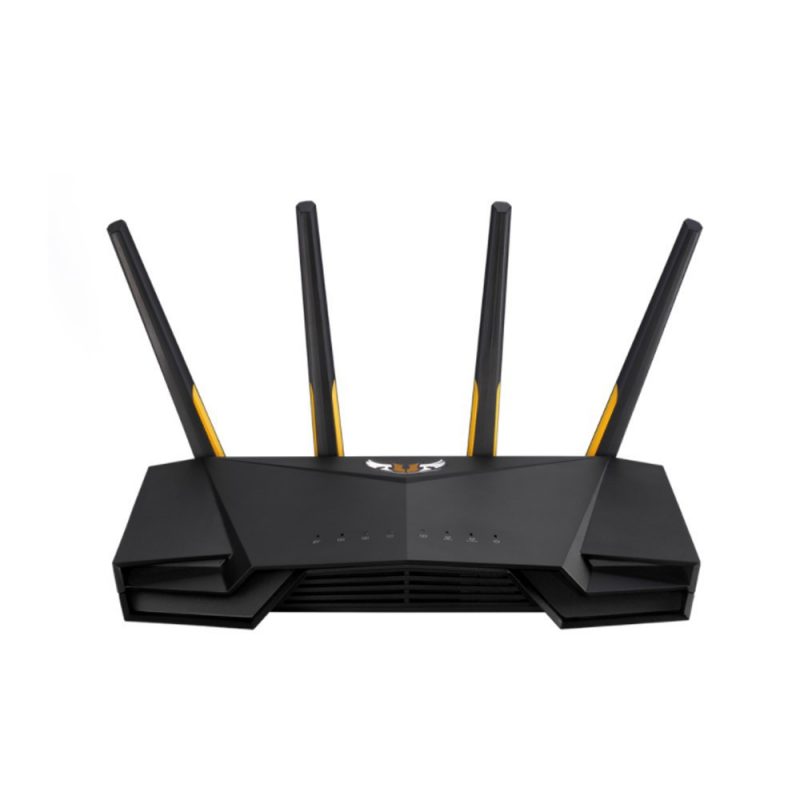

TUF-AX3000
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna
External antenna x 4
Transmit/Receive
2.4GHz 2×2
5GHz-1 2×2
Processor
1.5 GHz tri-core processor
Memory
256 MB Flash
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.1 Gen 1 x 1
Button
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
Package content
TUF-AX3000 WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
675 g
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Game
Game Boost / Acceleration
Alexa
Support Alexa skill
AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Traffic Control
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Maximum Traditional QoS rule : 32
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic analysis period : Daily, Weekly, Monthly
Yes
Wireless
Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WiFi MAC address filter
Maximum MAC filters : 64
RADIUS Server
Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G/4G LTE dongle
Android tethering
Maximum port forwarding rule : 64
Maximum port triggering rule : 32
Yes
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode : Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Yes
