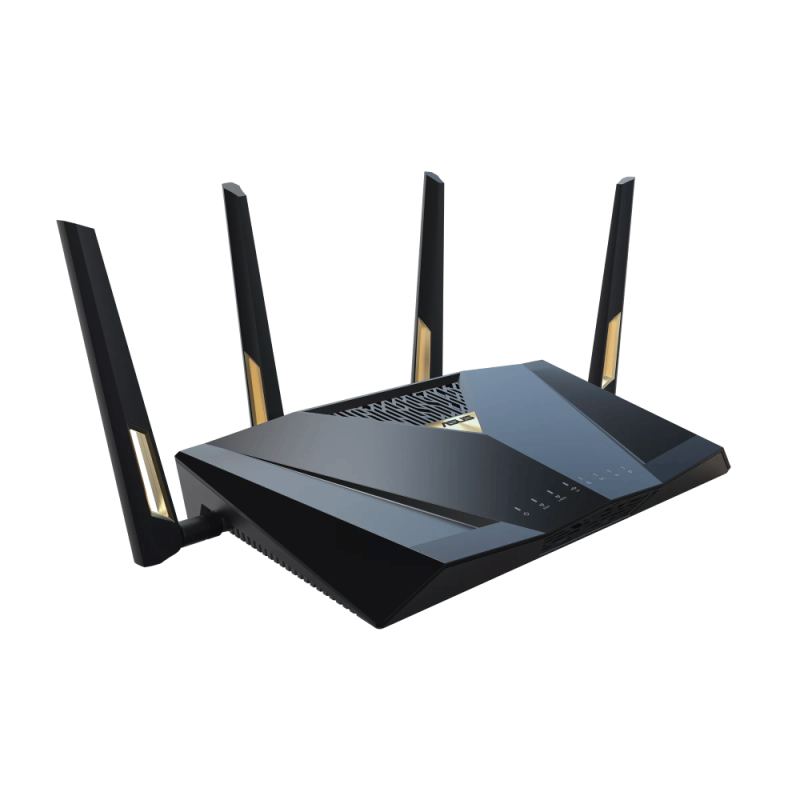

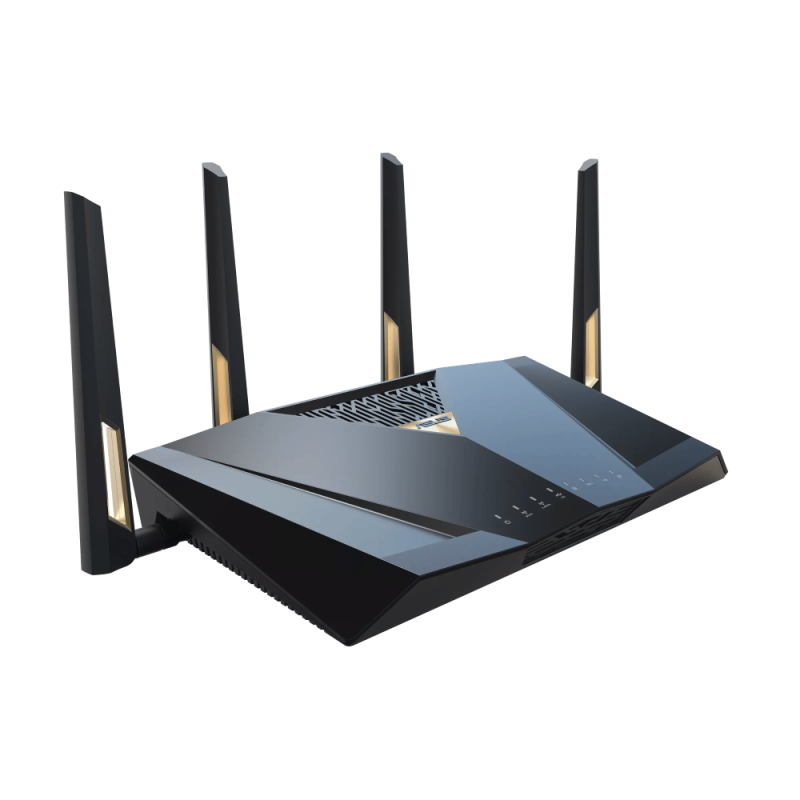

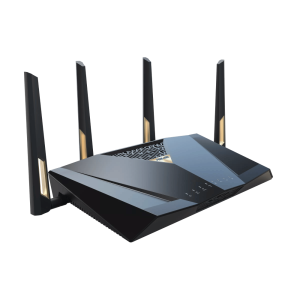

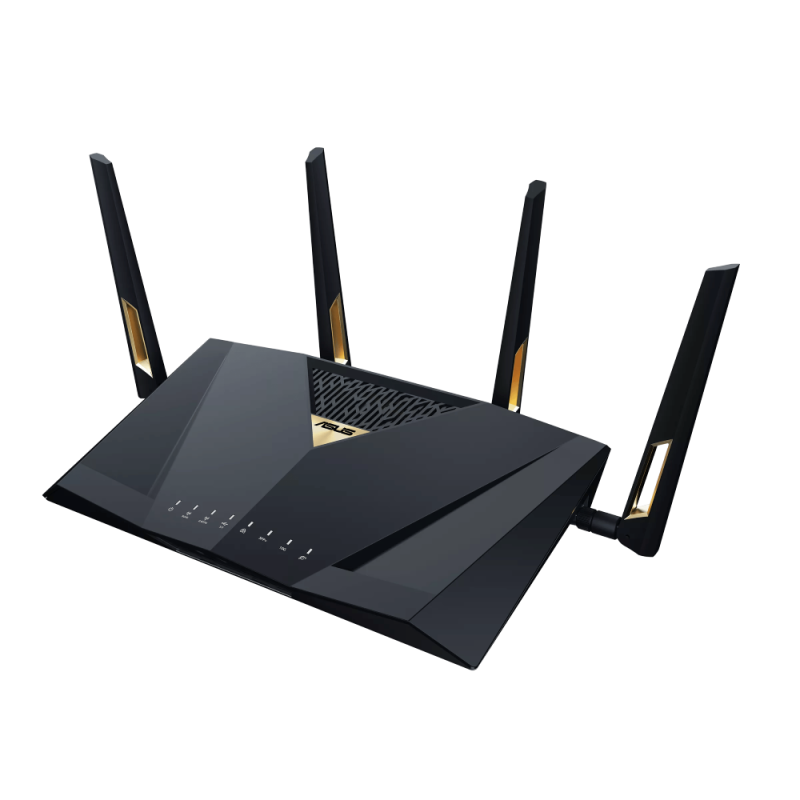

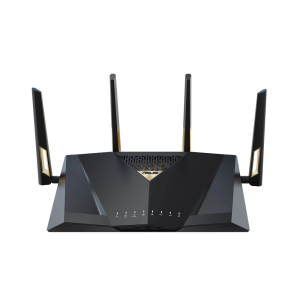

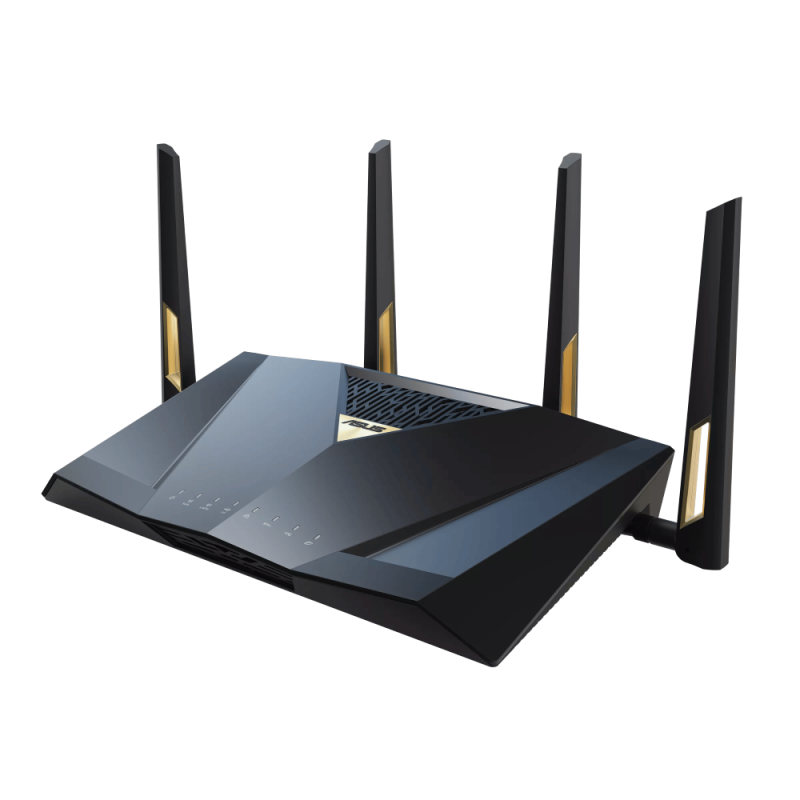

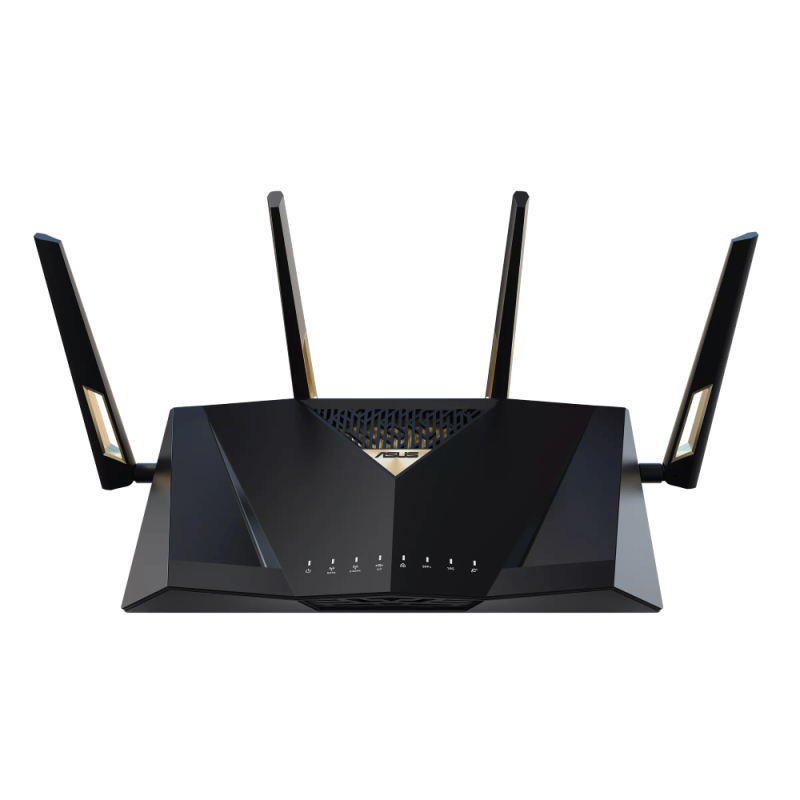

Asus RT-BE88U Dual Band 7 7.2 Gbps 34G Dual 10G SFP+ AiMesh Extendable AiProtection Pro Router

Model : RT-BE88U
Network Standard :
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment : BE7200 ultimate BE performance : 1376+5764 Mbps
WiFi Data Rate :
WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
Antenna : External antenna x 4
Transmit / Receive :
2.4GHz 4×4
5GHz 4×4
Processor : 2.6GHz quad-core processor
Memory : 256 MB Flash and 2 GB RAM
Boosts Speed :
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency :
2.4 GHz
5 GHz
Operating Mode :
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

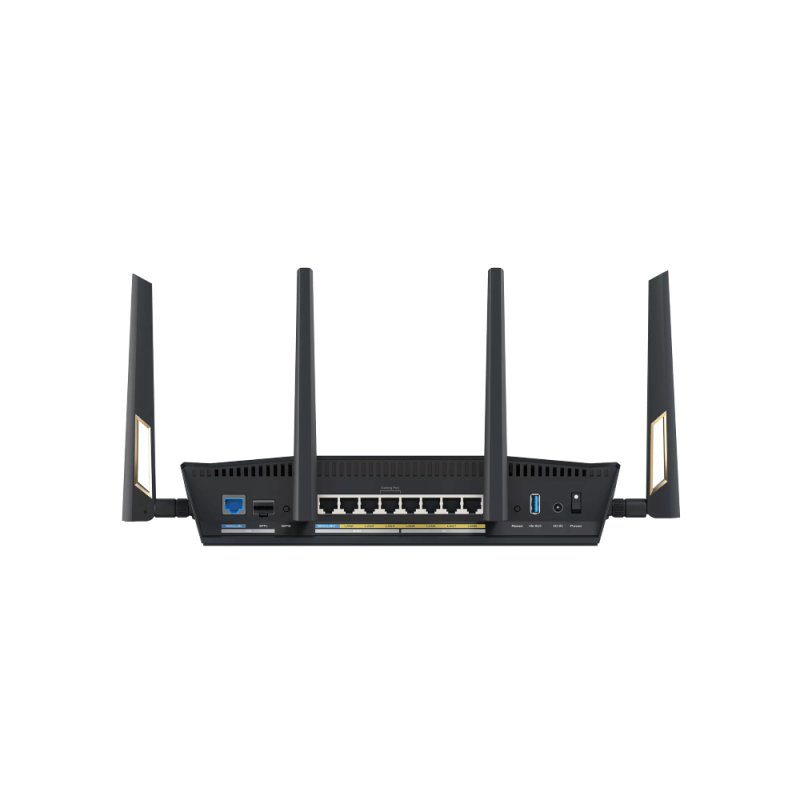

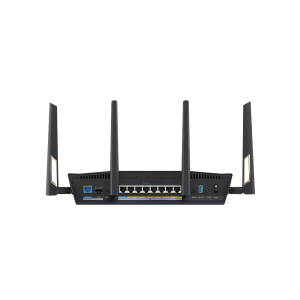

I/O Ports : 1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ for WAN, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for LAN, USB 3.2 Gen1 x1
Buttons : WPS Button, Reset Button, Power Switch
LED Indicator :
WAN x1
10G WAN x1
10G SFP+ x1
LAN x1
USB 3.2 Gen 1 x1
2.4GHz x1
5GHz x1
Power x1
Power Supply :
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current ? 19.5 V with max. 2.31 A current
Package Content :
RT-BE88U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g) : 1060 g
Product Dimensions : 300*188*60.5
AiMesh :
• Primary AiMesh Router
• AiMesh Node
Game :
WTFast
Mobile Game Mode
Gear Accelerator
OpenNAT (Game Profile)
Gaming Port
Parental Control :
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64
Guest Network :
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
Support Guest Network Pro
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection Time Limit
Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
Security :
AiProtection
VPN
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
Yes
Let's Encrypt
DNS-over-TLS
Security Scan
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection Pro :
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN :
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Traffic Control :
Yes
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Yes
WAN Aggregation
3G / 4G LTE dongle
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
LAN :
DHCP Server
Yes
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wireless :
MU-MIMO
Yes
WiFi MAC Address Filter
• Maximum MAC Filters : 64
RADIUS Client
USB application :
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface :
WEB: ASUSWRT
APP: ASUS Router APP
Administration :
Yes
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
