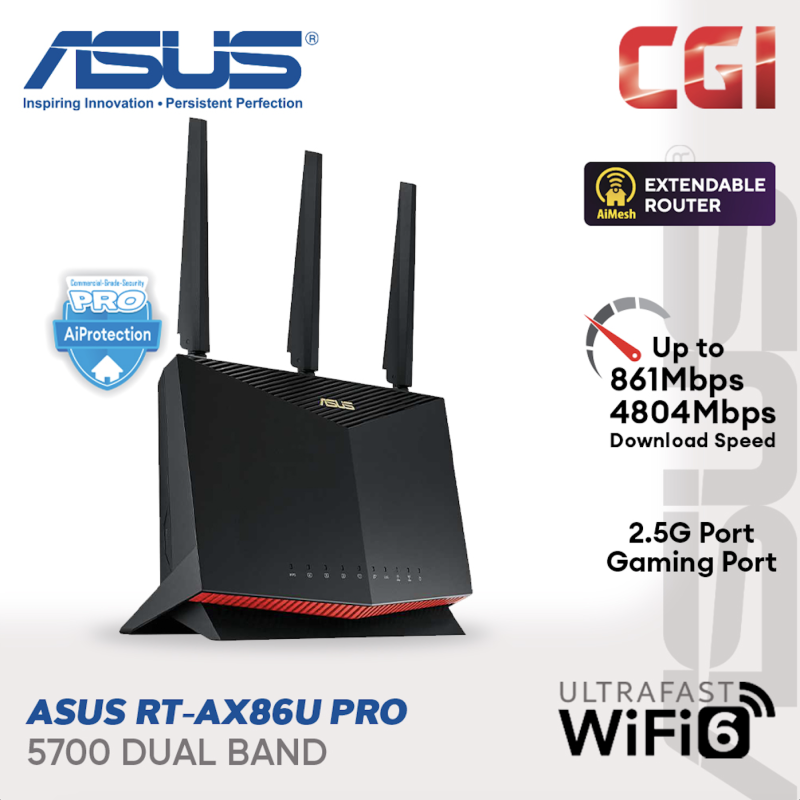

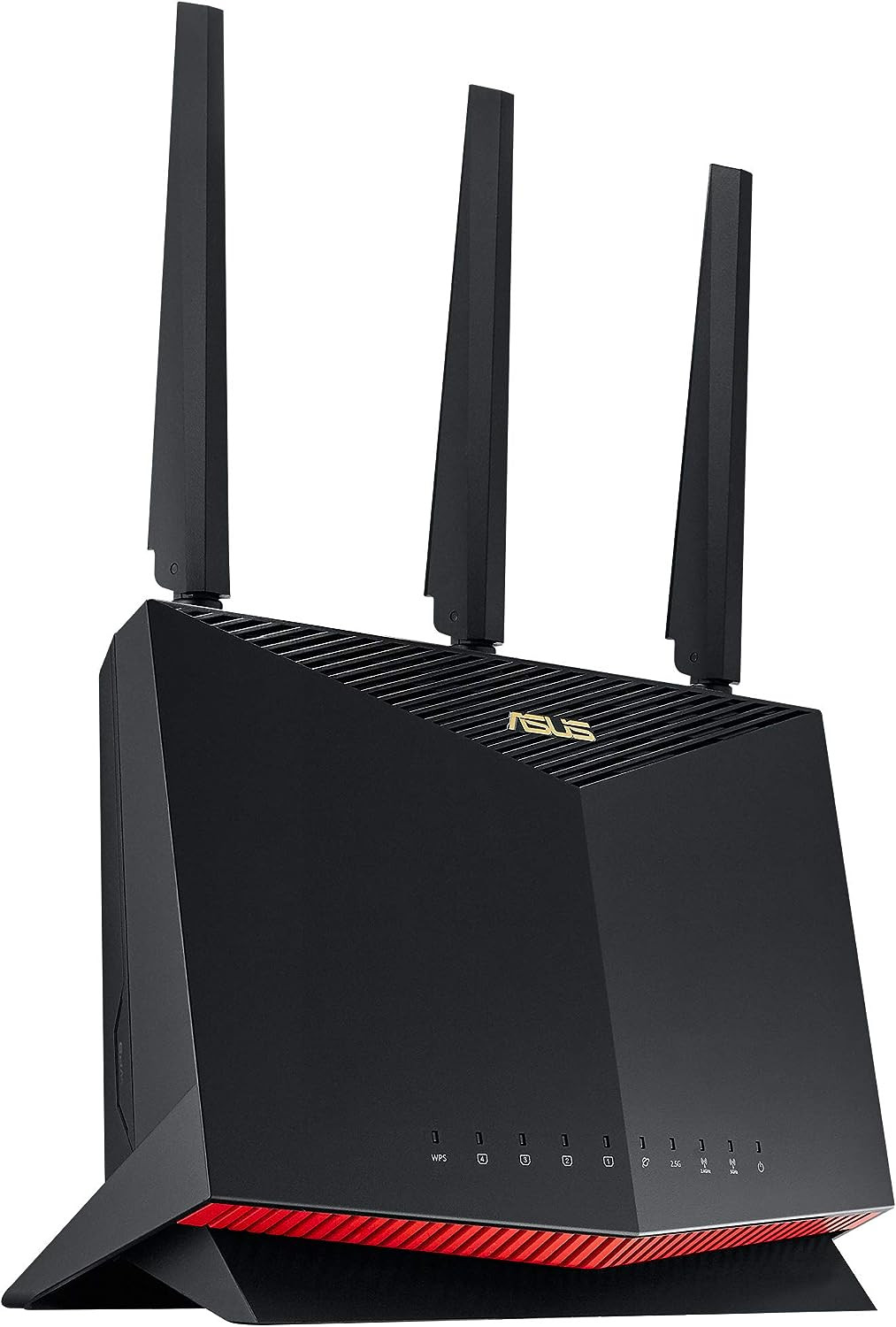

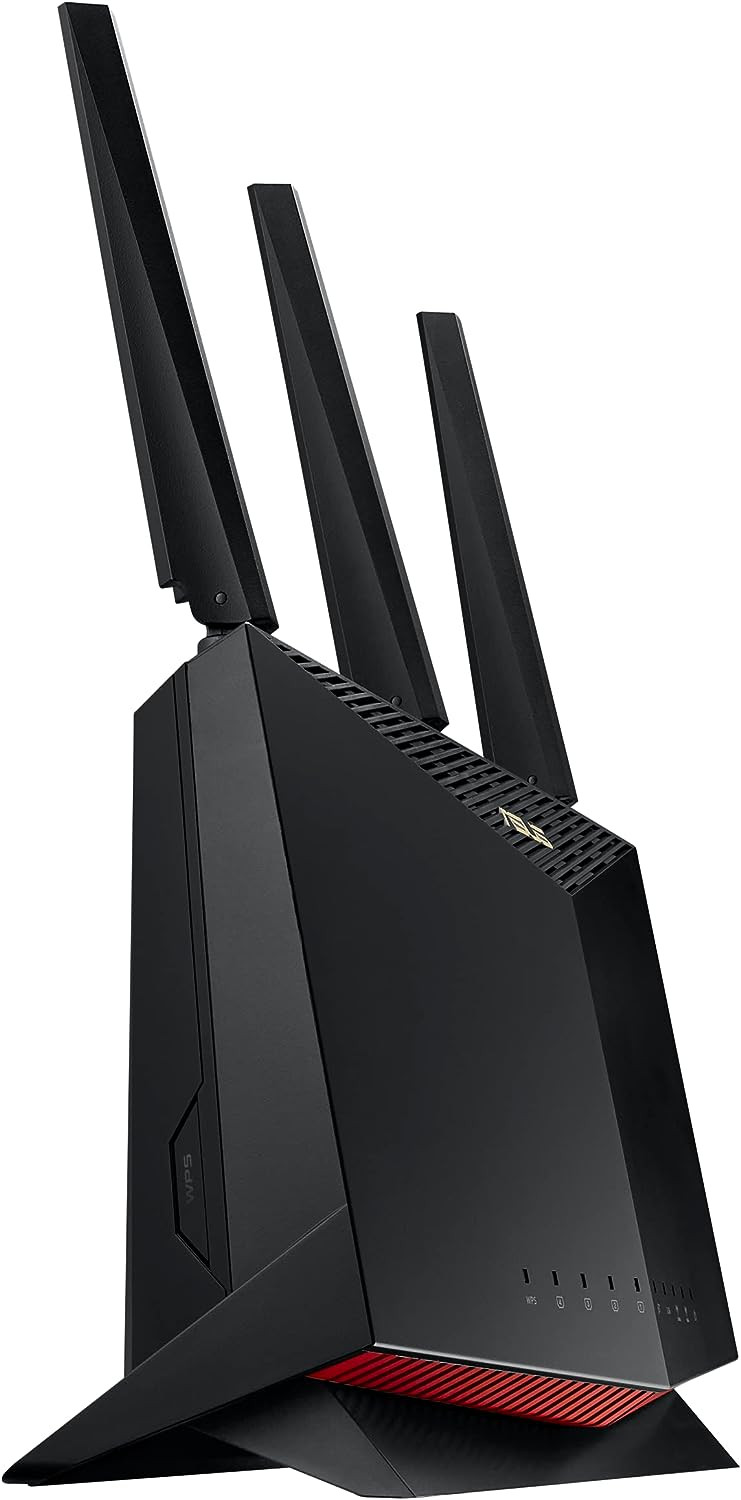

Asus RT-AX86U Pro AX5700 5700Mbps 2 Gbps 2.0GHz Quad-Core Dual Band WiFi 6 AiProtection Pro Extendable Gaming Router

Model

RT-AX86U Pro

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX5700 ultimate AX performance : 861+4804 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

External antenna x 3
Internal PCB antenna x 1

Transmit/Receive

2.4GHz 3×3
5GHz 4×4

Processor

2.0GHz quad-core processor

Memory

256 MB Flash and 1 GB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz

Ports

RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
— LAN: 4xGbE (2x port aggregation LAN)
— WAN: 1 GbE
— WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
— Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1

Button

WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicator

Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1

Power Supply

19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or
12 V with max.3 A current / 19.5 V with max. 2.31 A current

Package content

RT-AX86U Pro WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

814.5 g

AiMesh

AiMesh
Primary AiMesh router
AiMesh node

Router APP

ASUS Router APP

Game

Game Boost / Acceleration

Alexa

Support Alexa skill

AiProtection

AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control

Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64

Traffic Control

Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Maximum Traditional QoS rule : 32
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic analysis period : Daily, Weekly, Monthly
Yes

Wireless

MU-MIMO
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WiFi MAC address filter
Maximum MAC filters : 64
RADIUS Client
Yes

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
3G/4G LTE dongle
Android tethering
Maximum port forwarding rule : 64
Maximum port triggering rule : 32
Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Let's Encrypt
Safe browsing
DNS-over-TLS

LAN

DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64

VPN

Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Administration

Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Yes
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
