Connectivity
| Total Connectors |
1x 24-Pin ATX Motherboard |
| Cable Design |
Modular, Sleeved |
| PCIe Connector Distances |
26.6" / 675 mm |
| SATA Connector Distances |
15.7" / 400 mm |
| Peripheral Connector Distances |
17.7" / 450 mm |
| ATX Connector Distance |
24" / 610 mm |
| EPS Connector Distances |
25.6" / 650 mm |
Electrical
| Total Wattage |
1000 W |
| Number of +12 V Rails |
1 |
| Combined Power for +12 V |
996 W |
| Max Load for +12 V |
83 A |
| Combined Power for +3.3/+5 V |
250 W |
| Max Load for +3.3 V |
25 A |
| Max Load for +5 V |
25 A |
| Max Power for +5 Vsb |
15 W |
| Max Load for +5 Vsb |
3 A |
| Max Power for -12 V |
3.6 W |
| Max Load for -12 V |
0.3 A |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
General
| Efficiency Rating |
80 PLUS Platinum |
| Active Power Factor Correction |
No |
| Efficiency |
89 to 92% at 100 to 50% Load |
Cooling
| Fan Size |
135 mm |
| Bearing Type |
Ball |
Physical
| Form Factor |
ATX |
| Compliance |
ATX 12 V |
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Certifications |
RoHS |

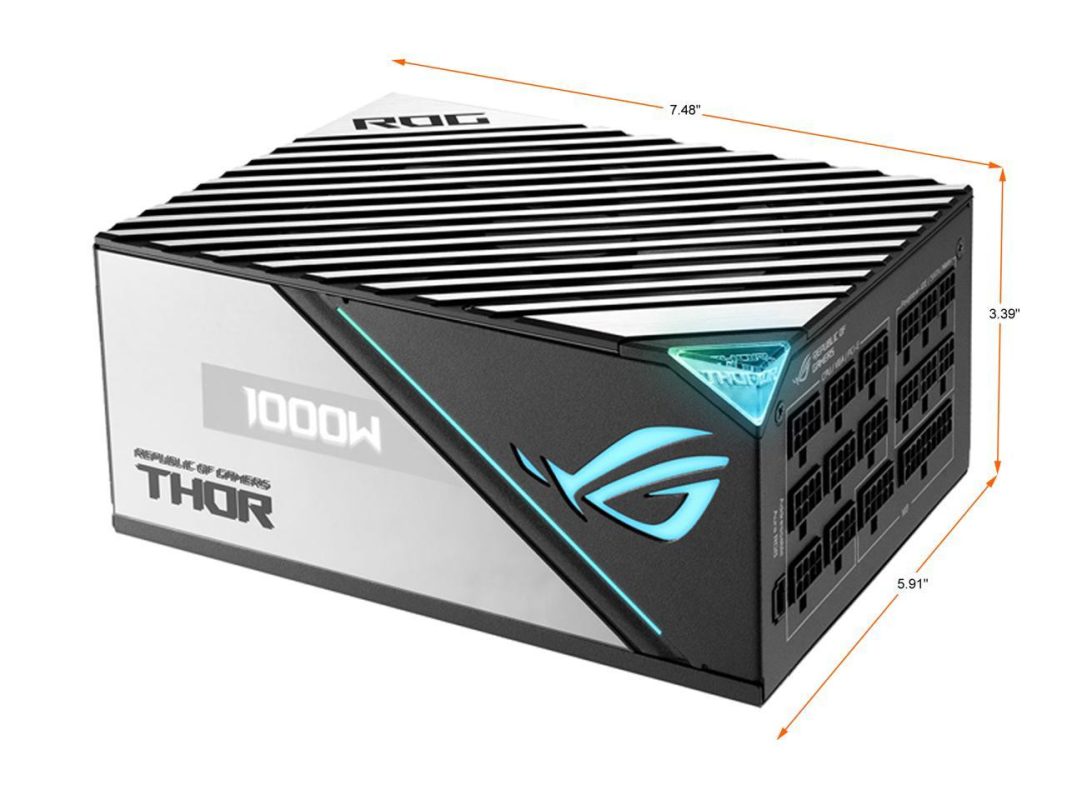

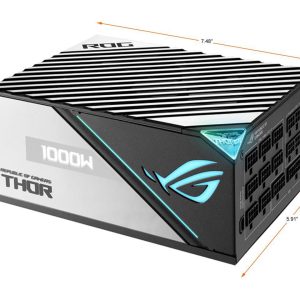

| Dimensions |
7.5 x 5.9 x 3.4" / 190 x 150 x 86 mm |
| Weight |
5.22 lb / 2.37 kg |
Packaging Info
| Package Weight |
10.95 lb |
| Box Dimensions (LxWxH) |
15.2 x 9.5 x 5.2" |
