Connectivity

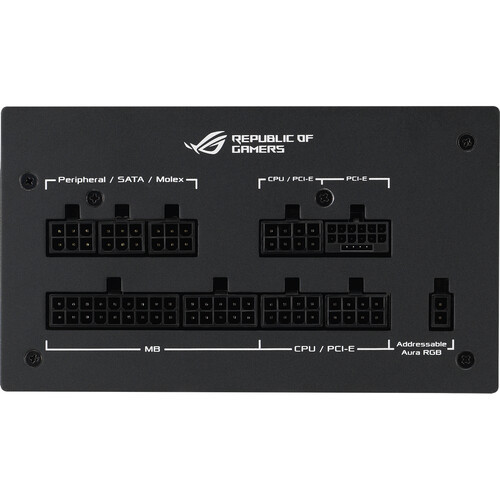

| Total Connectors |
1x 20+4-Pin ATX Motherboard |
| Cable Design |
Flat |
| PCIe Connector Distances |
27.6" / 700 mm |
| SATA Connector Distances |
15.7" / 400 mm |
| Peripheral Connector Distances |
15.7" / 400 mm |
| ATX Connector Distance |
23.6" / 600 mm |
| EPS Connector Distances |
25.6" / 650 mm |
Electrical
| Total Wattage |
850 W |
| Number of +12 V Rails |
1 |
| Combined Power for +12 V |
849.6 W |
| Max Load for +12 V |
70.8 A |
| Combined Power for +3.3/+5 V |
120 W |
| Max Load for +3.3 V |
22 A |
| Max Load for +5 V |
22 A |
| Max Power for +5 Vsb |
15 W |
| Max Load for +5 Vsb |
3 A |
| Max Power for -12 V |
3.6 W |
| Max Load for -12 V |
0.3 A |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
General
| Efficiency Rating |
80 PLUS Gold |
| Active Power Factor Correction |
Yes |
Cooling
| Fan Size |
135 mm |
| Bearing Type |
Ball |
| Noise Level |
30 dBA |
Physical
| Form Factor |
ATX |
| Compliance |
ATX 12 V, ATX 12 V v3.0 |
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Certifications |
RoHS |
| Dimensions |
5.9 x 3.4 x 7.1" / 150 x 86 x 180 mm |
| Weight |
6 lb / 2.72 kg |
Packaging Info
| Package Weight |
7.655 lb |
| Box Dimensions (LxWxH) |
15.7 x 9.8 x 5.1" |
