Asus ROG Rapture GT-AXE16000 Quad-band WiFi 6E Gaming Router

Model Name

GT-AXE16000

Network Standard

WiFi 6 (802.11ax)

WiFi 6E (802.11ax)

Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

AXE16000 ultimate AX/AXE performance

AX technology

Yes

Data Rate

2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

6GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 8 (non-detachable) Internal antenna x 4

Transmit/Receive

2.4GHz 4×4

5GHz-1 4×4

5GHz-2 4×4

6GHz 4×4

Processor

2.0GHz quad-core processor

Memory

256MB NAND flash and 2GB DDR4 RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz

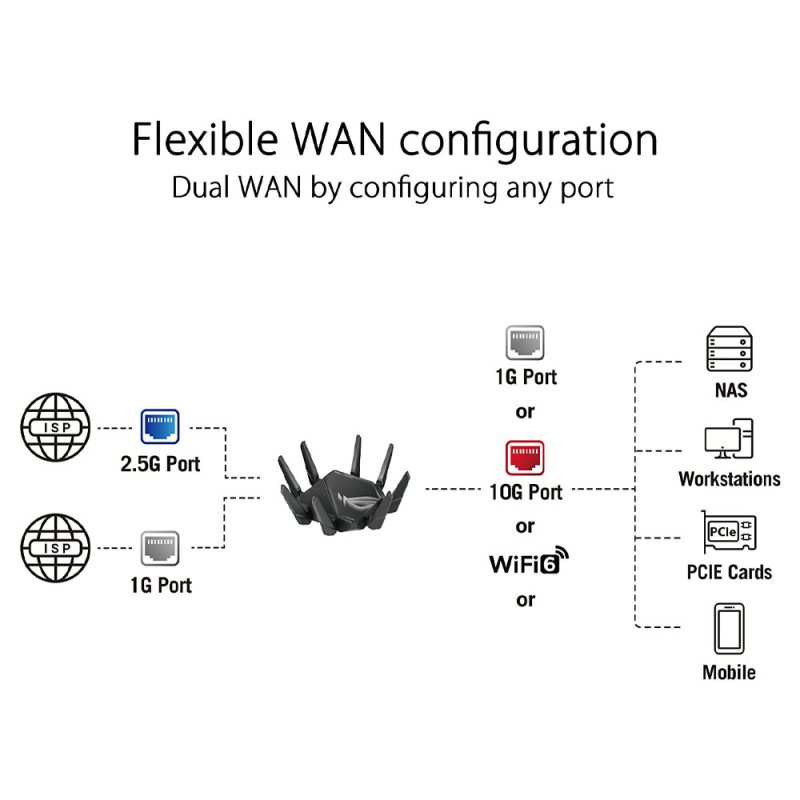

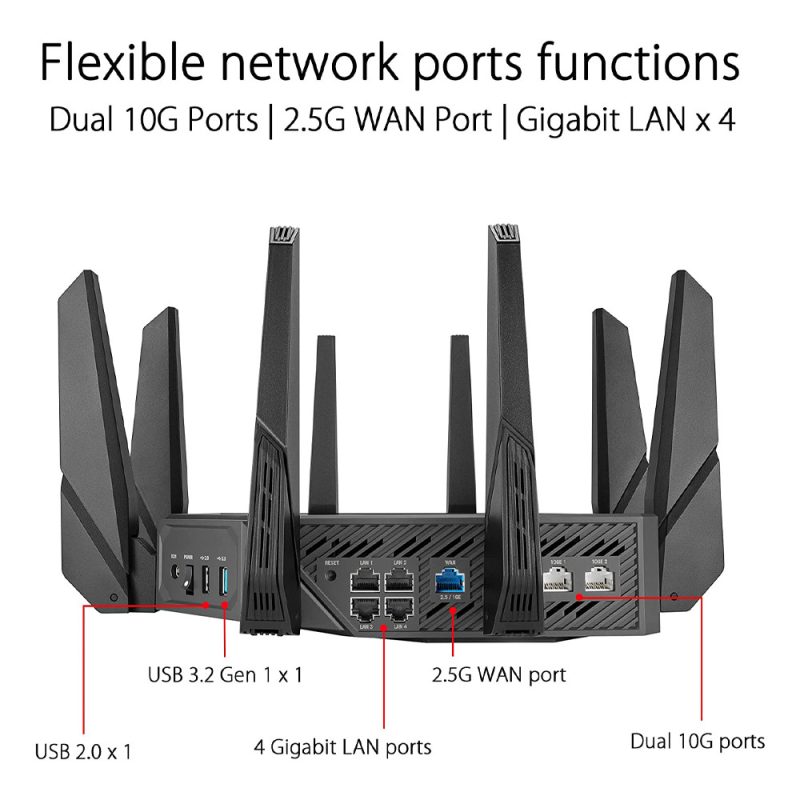

Ports

1 x 2.5 Gigabit WAN Port 2 x 10 Gigabit WAN/LAN Ports 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port

Button

WPS Button, LED Button, Reset Button, Power Switch

LED Indicator

Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 6G x 1 10GE Port x 1 LAN x 1 WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ? 19.5 V with max. 3.33 A current

Package content

GT-AXE16000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

2425

AiMesh

AiMesh

Primary AiMesh router

AiMesh node

Router APP

ASUS Router APP

Game

Game Boost/acceleration

Game Radar

WTFast

ROG_First

OpenNAT (Game Profile)

Alexa

Support Alexa skill

AiProtection

AiProtection Pro

Router Security Assessment

Malicious site blocking

Two-Way IPS

Infected Device Prevention and Blocking

Parental Control

Parental Control

Parental Control Customized Internet schedule

Maximum Parental Control profile : 64

Maximum Parental Control content filter rule : 64

Traffic Control

Adaptive QoS

Bandwidth Monitor

Bandwidth limiter

Maximum Bandwidth limiter rule : 32

Traditional QoS

Traffic Monitor

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic Analyzer

Traffic analysis period : Daily, Weekly, Monthly

Website history

Wireless

IPv6

MU-MIMO

WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE

UTF-8 SSID

Guest Network

Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

WPS

Wi-Fi MAC address filter

Maximum MAC filters : 64

Wireless scheduler

Airtime fairness

RADIUS Client

Universal beamforming
