Model |
PRIME H610M-K D4-CSM |
|
CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
|
Chipset |
Intel® H610 Chipset |
|

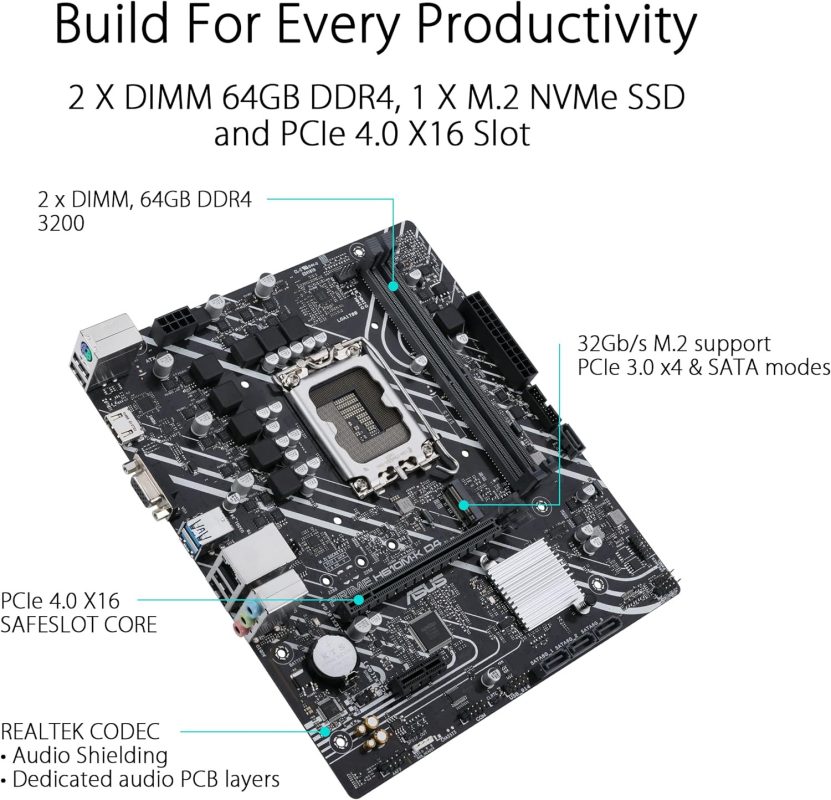

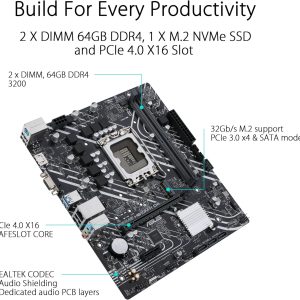

Memory |
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
|
Graphics |
1 x D-Sub port |
| 1 x HDMI® port** | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
|
Expansion Slots |
Intel® 13th & 12th Gen Processors |
| 1 x PCIe 4.0 x16 slot | |
| Intel® H610 Chipset | |
| 1 x PCIe 3.0 x1 slot | |
|
Storage |
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Intel® H610 Chipset | |
| M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. | |
|
Ethernet |
1 x Realtek 1Gb Ethernet |
|
USB |
Rear USB (Total 6 ports) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 4 ports) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
|
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| – Audio Shielding | |
| – Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
|

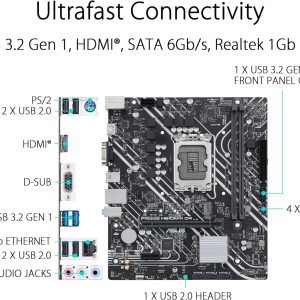

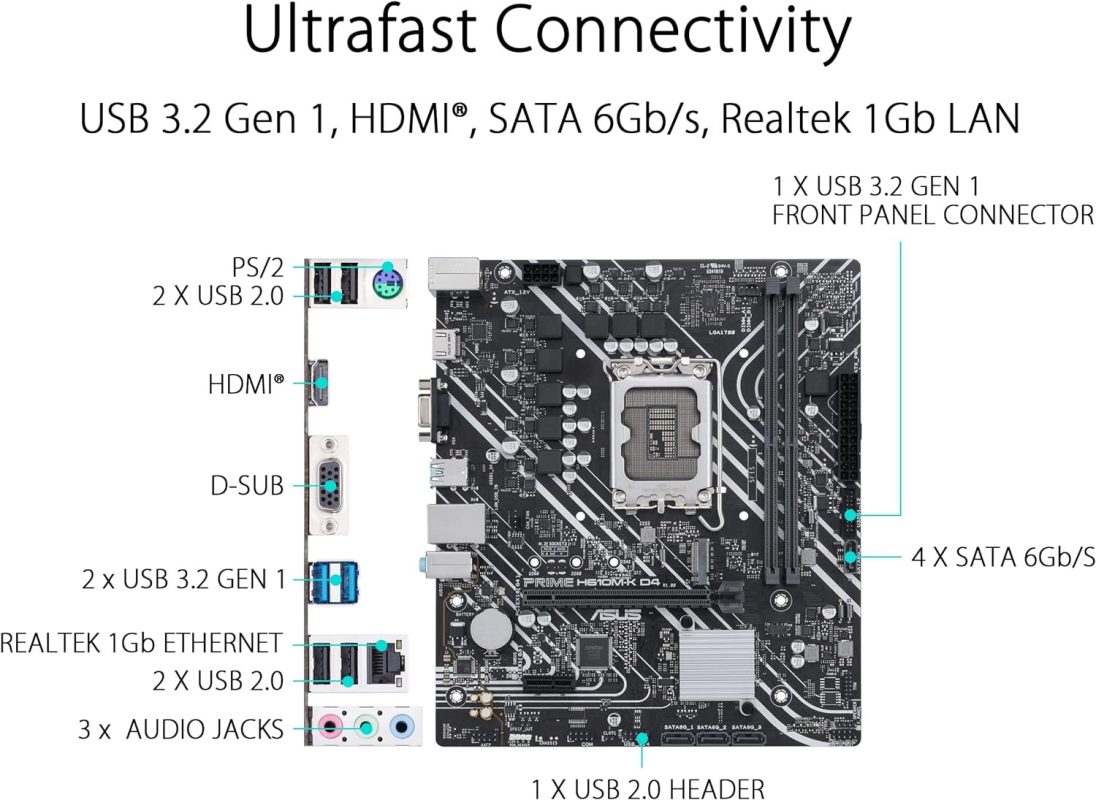

Back Panel I/O Ports |
2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x D-Sub port | |
| 1 x HDMI® port | |
| 1 x Realtek 1Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
|
Internal I/O Connectors |

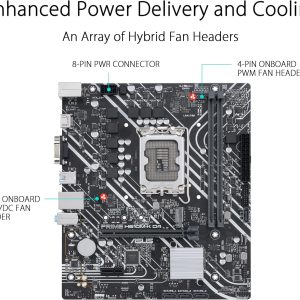

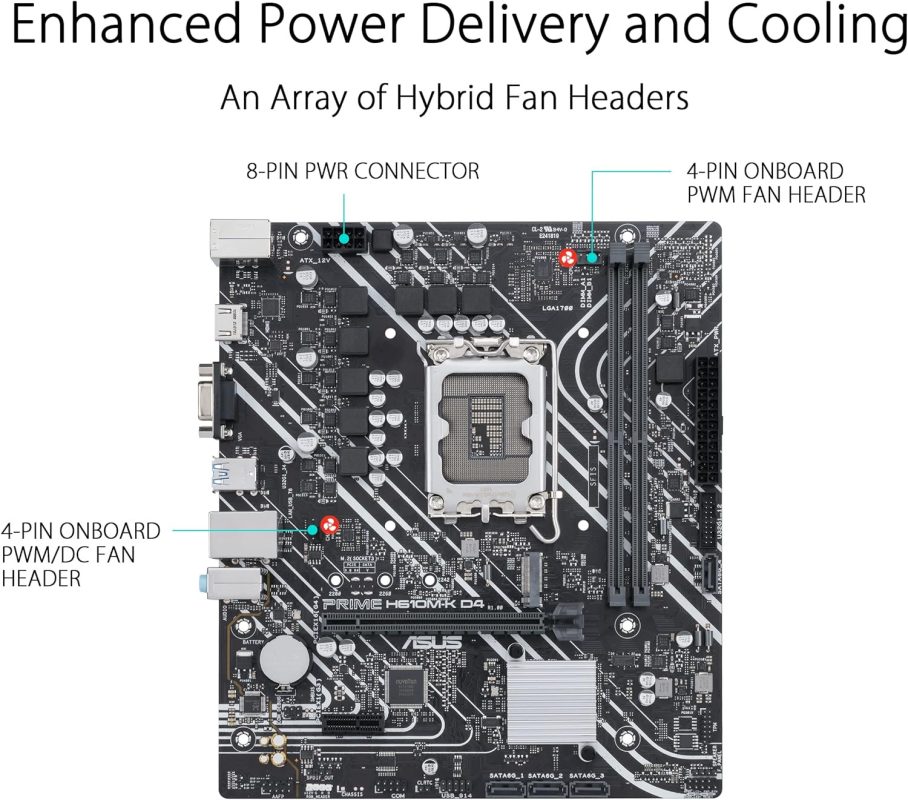

Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin Chassis Fan header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 1 x M.2 slot (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
| Miscellaneous | |

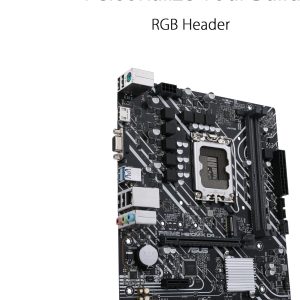

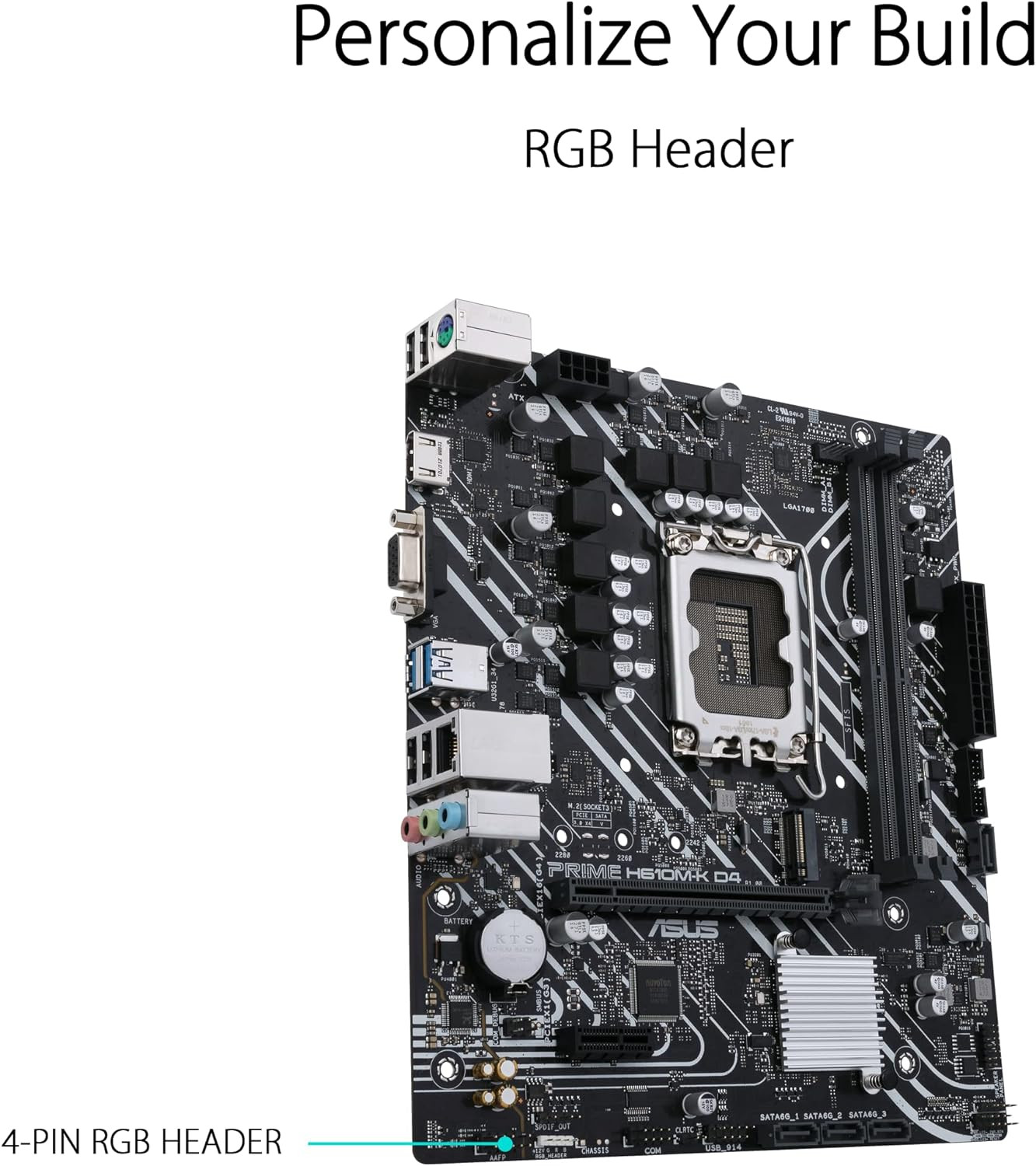

| 1 x RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel header | |
|
Special Features |
ASUS 5X PROTECTION III |
| – DIGI+ VRM | |
| – LANGuard | |
| – Overvoltage Protection | |
| – SafeSlot Core | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – Q-DIMM | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – Aluminum heatsink design | |
| ASUS Lighting Control | |
| – RGB header | |
|
Software Features |
ASUS Exclusive Software |
| Armoury Crate | |
| AI Suite 3 | |
| – Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI+ VRM | |
| Fan Xpert | |
| ASUS CPU-Z | |
| IT Management software supported | |
| – ASUS Control Center Express(ACCE) | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME, PXE |
|

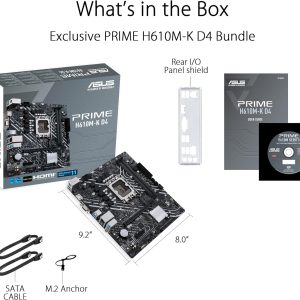

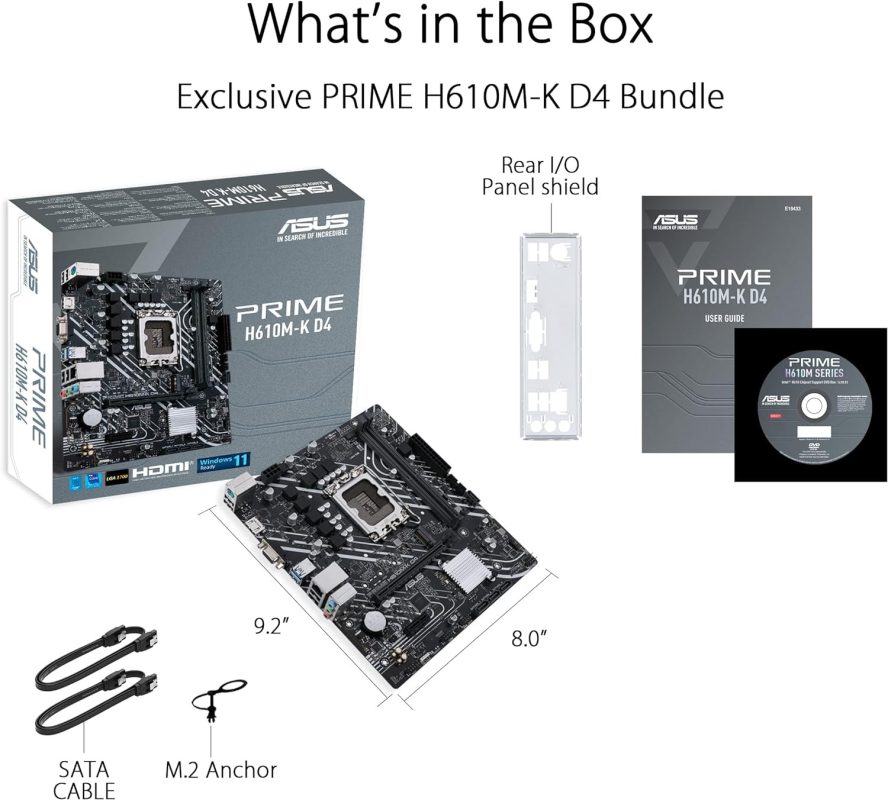

Accessories |
|
|
Cables |
2 x SATA 6Gb/s cables |
| Miscellaneous | 1 x I/O Shield |
| 1 x M.2 ANCHOR | |
| Installation Media | 1 x Support DVD |
| Documentation | 1 x ACC Express Activation Key Card |
| 1 x User Guide | |
|
Operating System |
Windows® 11 64-bit, Windows® 10 64-bit |
|
Form Factor |
mATX Form Factor |
| 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |

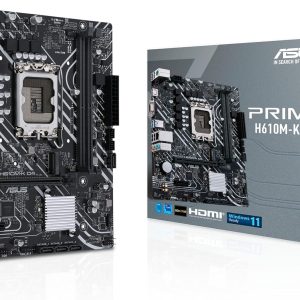

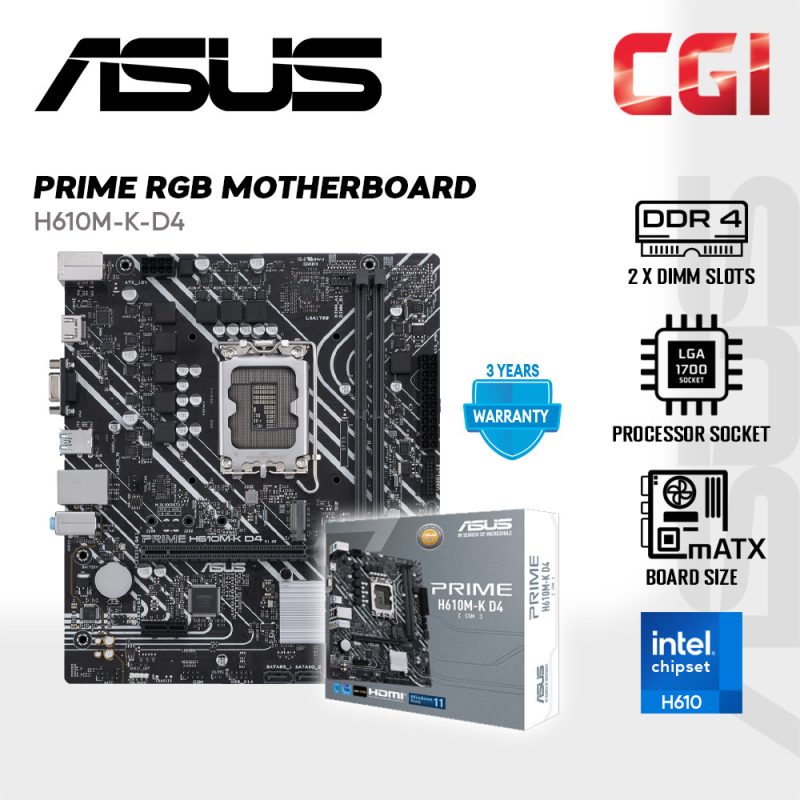

Asus PRIME H610M-K-D4-CSM DDR4 LGA 1700 Motherboard Bundle i3-14100 / i5-14400 / i3-12100 / i5-12400
RM369 – RM1475Motherboard : H610M-K-D4-CSM
Bundle Processor Option :
i3-14100 / 14100F
i5-14400 / 14400F
i3-12100 / 12100F
i5-12400 / 12400F
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header
- Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
- 5X Protection III: Multiple hardware safeguards for all-round protection
- ASUS Control Center Express (ACCE) for easier IT endpoint management
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
| Combo Option | Motherboard ONLY, i3-14100 + MOBO, i3-14100F + MOBO, i5-14400 + MOBO, i5-14400F + MOBO, i3-12100 + MOBO, i3-12100F + MOBO, i5-12400 + MOBO, i5-12400F + MOBO |
