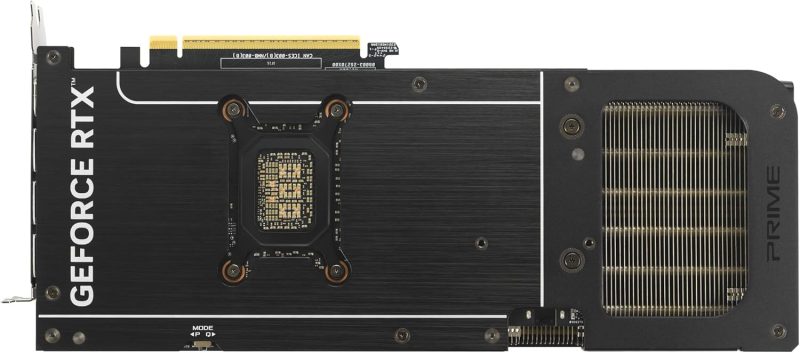

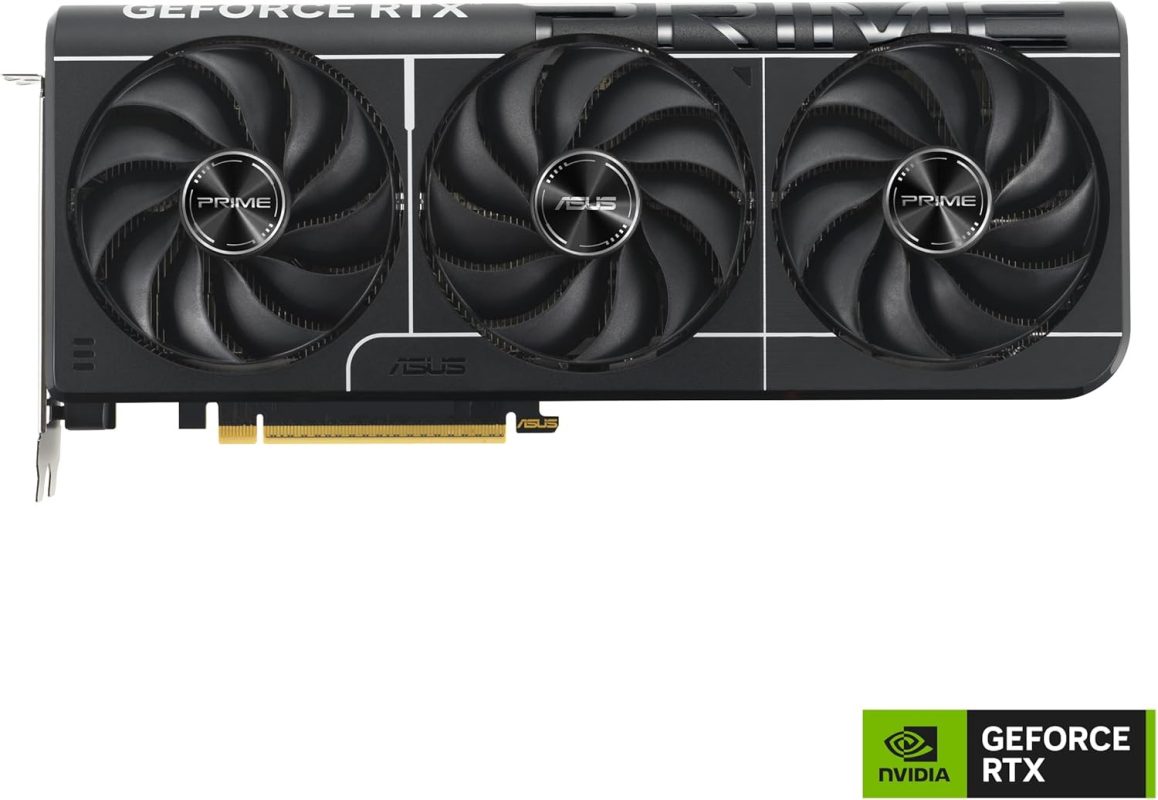

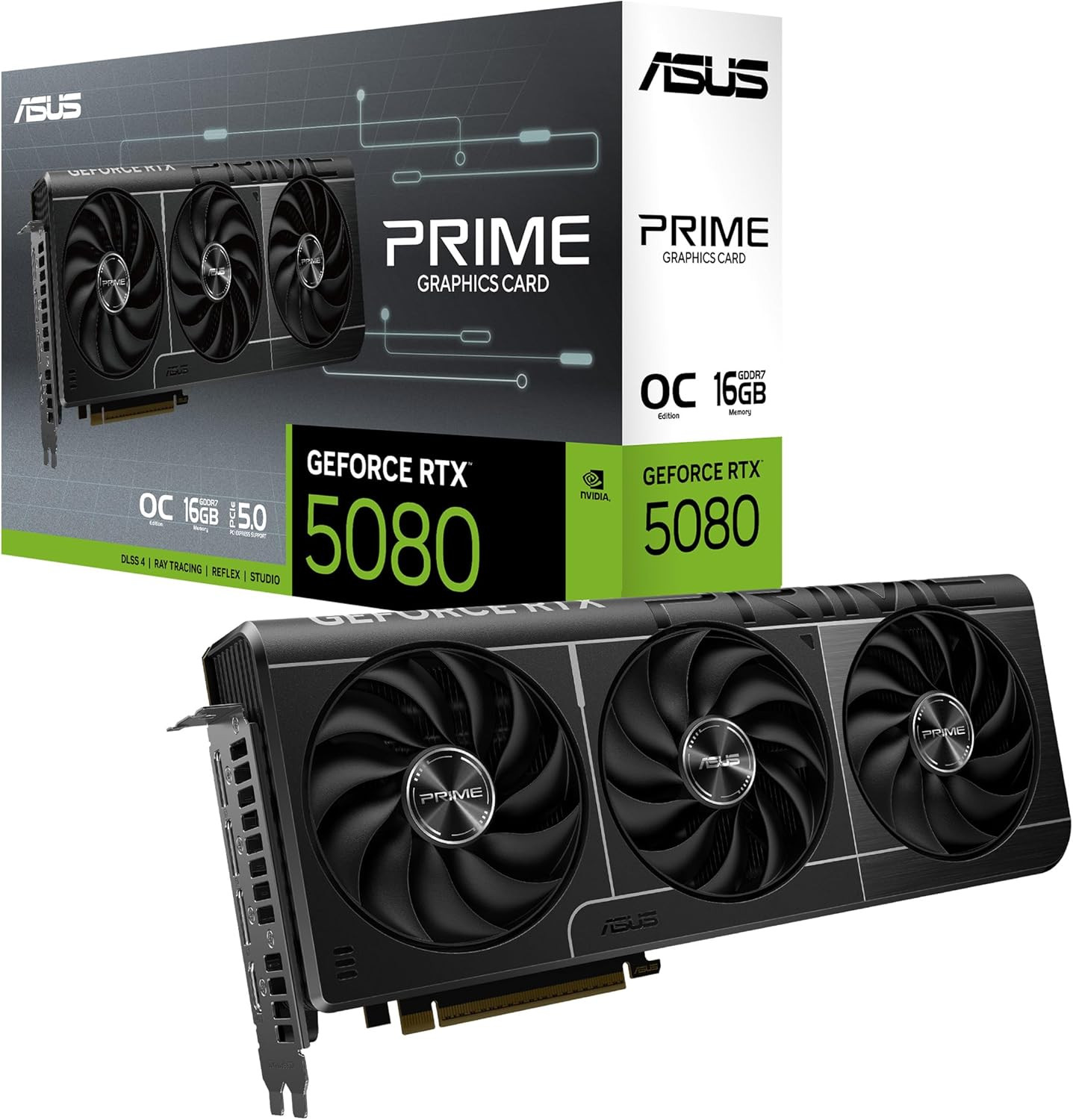

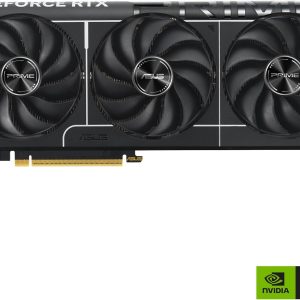

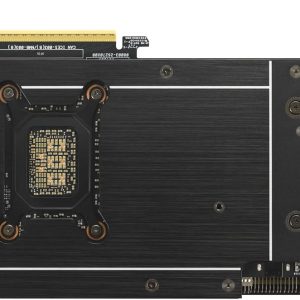

| Brand | ASUS |
|---|---|
| Series | PRIME |
| Model | PRIME-RTX5080-O16G |
| Part Number | 90YV0LX0-M0AA00 |
| Interface | PCI Express 5.0 x16 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5080 |
| Architecture | Blackwell |
| CUDA Cores | 10752 Cores |
| Effective Memory Clock | 30 Gbps |
|---|---|
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
| Max Resolution | 7680 x 4320 |
|---|---|
| CrossFireX Support | No |
| SLI Support | No |
| Thermal Design Power | 360W |
| Recommended PSU Wattage | 850W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
|---|---|
| Max GPU Length | 306 mm |
| Card Dimensions (L x H) | 12 x 5 x 2 inch |
| Slot Width | 2.5 Slots |
| Package Contents | 1 x Speedsetup Manual 1 x ASUS Velcro Hook & Loop 1 x Thank You Card 1 x Adapter Cable (1 to 3)? |
|---|

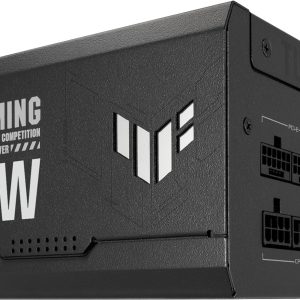

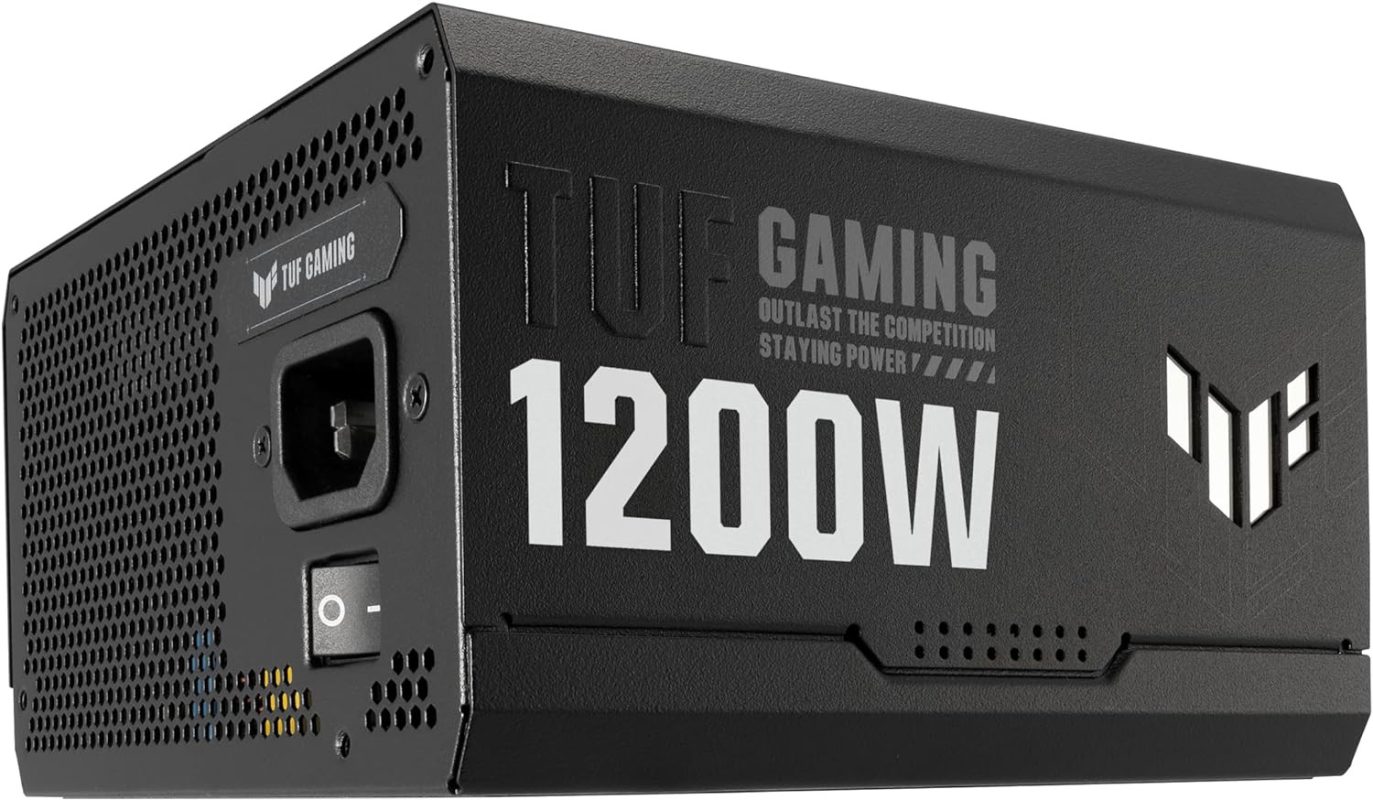

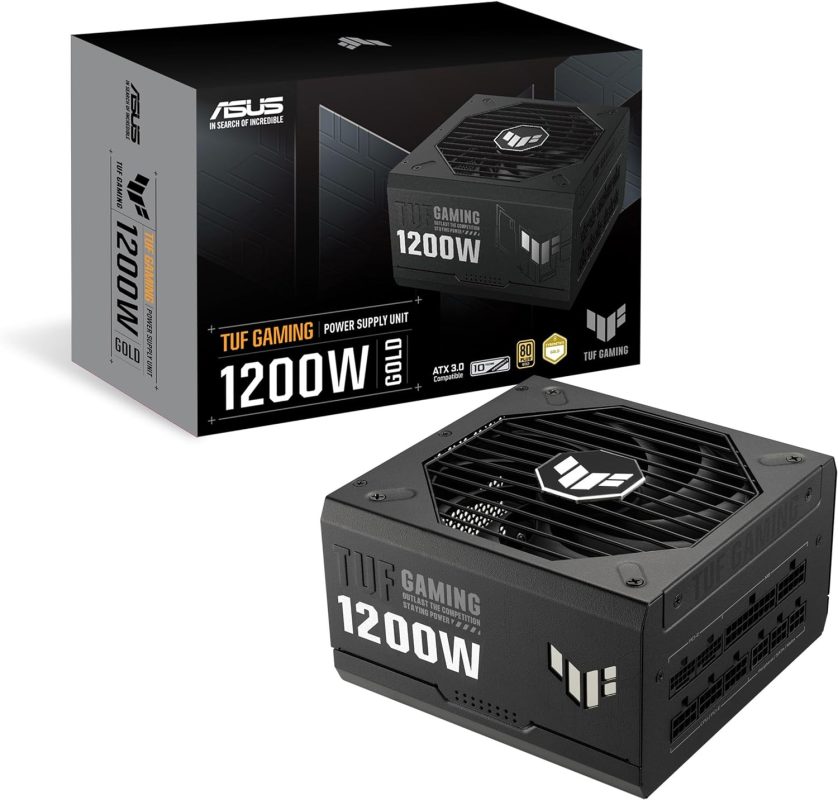

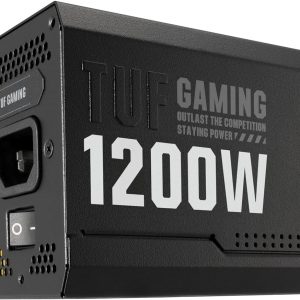

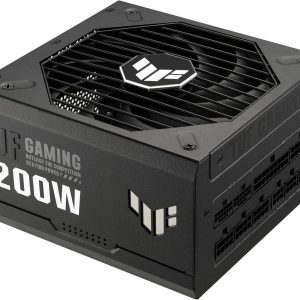

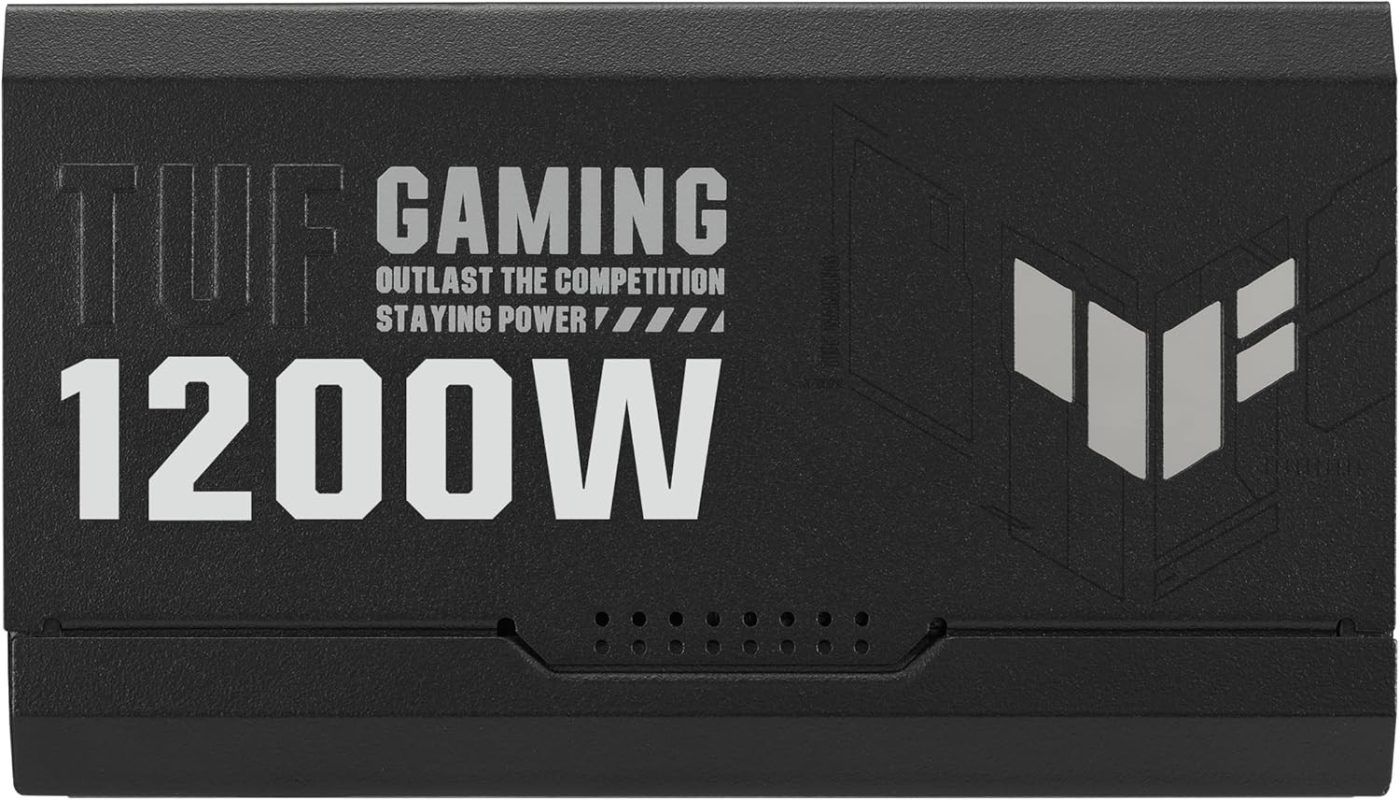

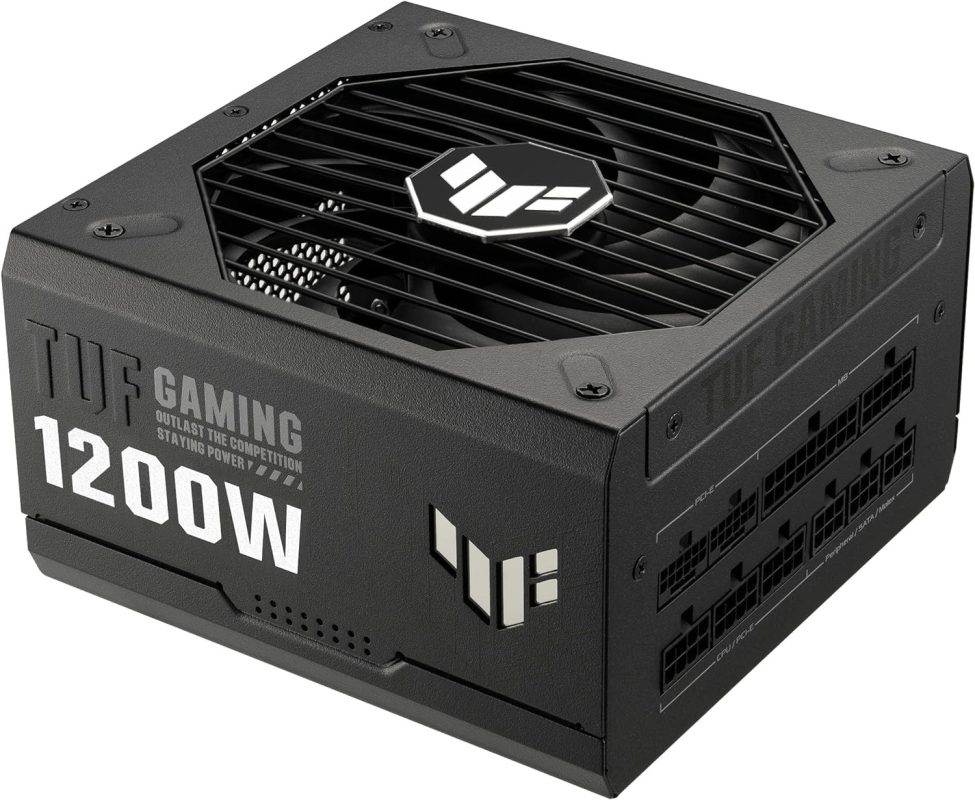

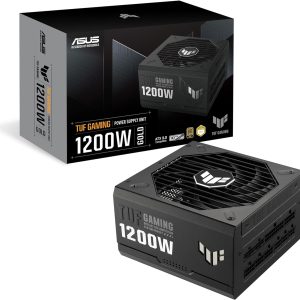

TUF Gaming 1200W Gold
Intel Form Factor : ATX12V
PFC Type : Active PFC
ATX Standard : ATX 3.1
Dimensions : 150 x 150 x 86 mm
Efficiency : 80Plus Gold
MTBF : >120,000 hrs @ 40°C
Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS
AC Input Range : 100-240Vac
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
Maximum Load : 25A25A99A 0.8A 3A
Combined Load : 130W 130W 1188W 9.6W 15W
Total Output : 1200W

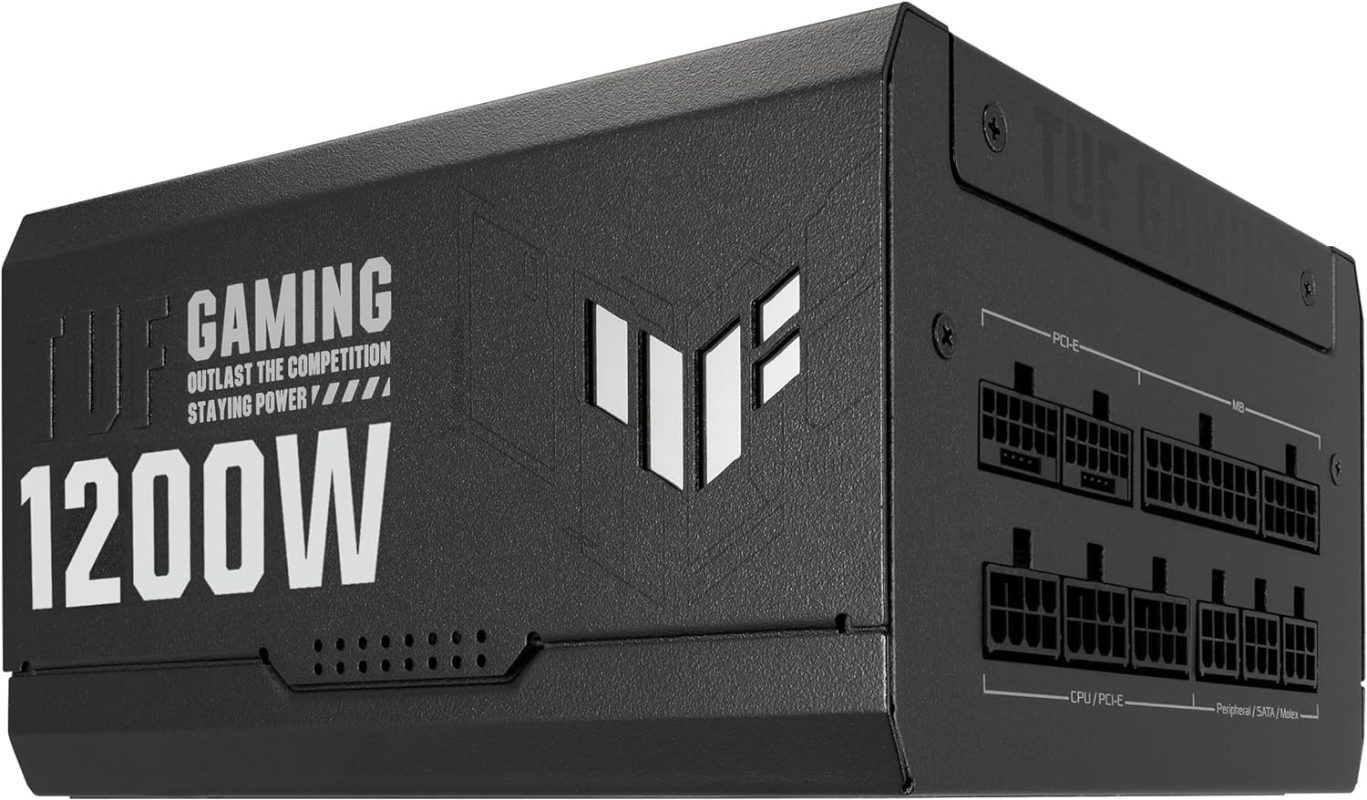

Cable Connectors :
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents :
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 2 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight : 2.66kg (single PSU)
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
