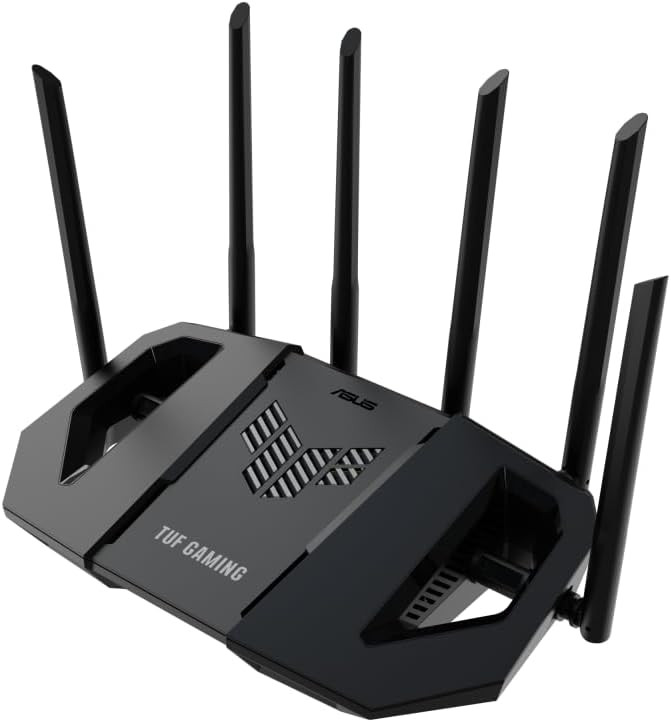

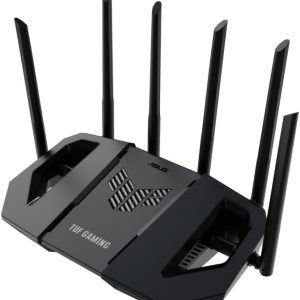

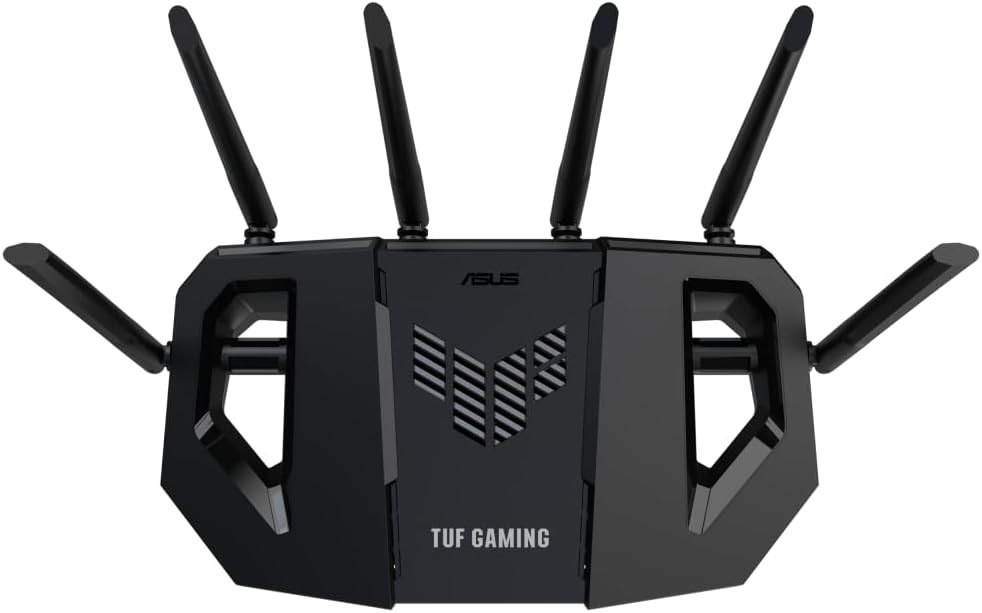

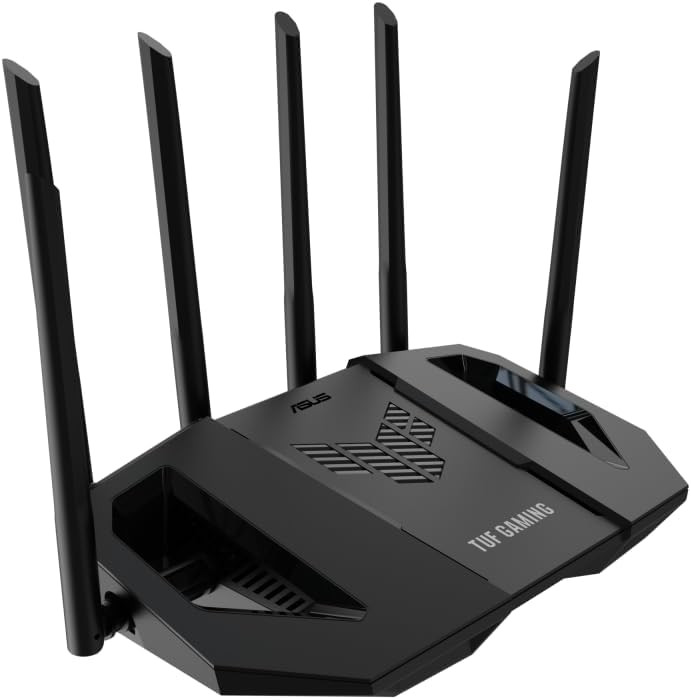

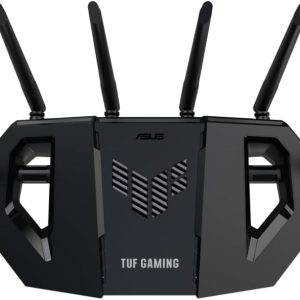

Model : TUF Gaming BE6500
Network Standard
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment : BE6500 ultimate BE performance : 688+5764 Mbps
WiFi Data Rate :
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
Antenna : External fixed antenna x 6
Transmit / Receive :
5GHz 4×4
2.4GHz 2×2
Processor : 1.5GHz Quad-core Processor
Memory : 256 MB Flash and 1 GB RAM
Boosts Speed :
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency :
5 GHz
2.4 GHz
Operating Mode :
Repeater Mode
Media Bridge Mode
Access Point Mode
AiMesh Node Mode
Wireless Router Mode

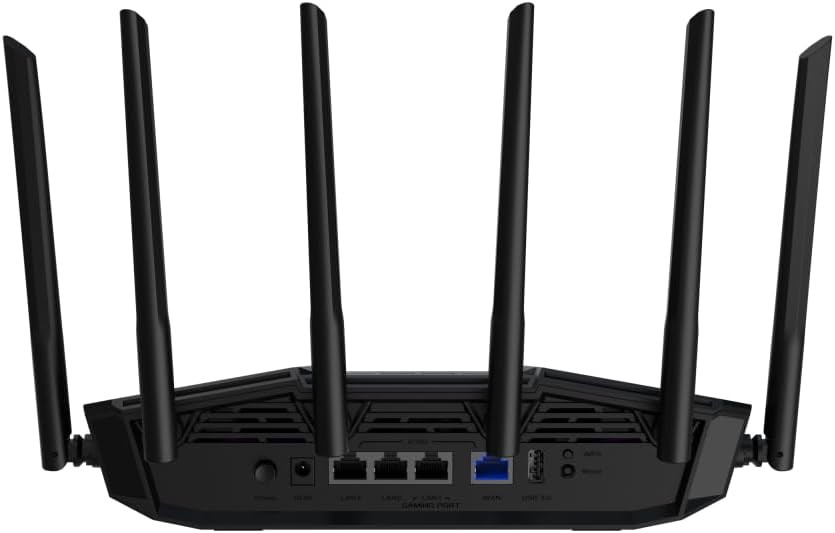

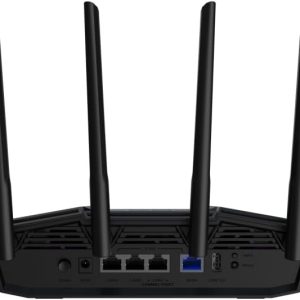

I/O Ports :
1 x 2.5GbE for WAN
3 x 2.5GbE for LAN
1 x USB 3.2 Gen1
Buttons : WPS Button, Reset Button, Power Button
LED Indicator :
WAN(Internet) x1
LAN x1
5GHz x 1
2.4GHz x1
Power x1
Power Supply :
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current
Package Content :
TUF-BE6500 dual-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g) : 772 g
Product Dimensions : 304 x 174 x 214 mm
AiMesh
• AiMesh Node
• Primary AiMesh Router
AiMesh
Game :
Gaming Port
OpenNAT (Game Profile)
Gear Accelerator
Game Boost / Acceleration
Parental Control :
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
"Allow you to block access to unwanted websites and apps."
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64
Guest Network :
Support Guest Network
Guest Network Connection Time Limit
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
Security :
VPN
DNS-over-TLS
Security Scan
SSH
Firewall
Let's Encrypt
WPS
AiProtection :
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection :
AiProtection Pro
• Infected Device Prevention and Blocking
• Two-Way IPS
• Malicious Site Blocking
• Router Security Assessment
VPN :
Support Surfshark
Support Nord VPN
Instant Guard
VPN Client WireGuard
VPN Server WireGuard
VPN Fusion
VPN Server PPTP
VPN Server Open VPN
VPN Server IPSec
VPN Client PPTP
VPN Client Open VPN
VPN Client L2TP
Traffic Control :
• Website History
Traffic Analyzer
• Wireless Traffic Monitor
• Wired Traffic Monitor
• Real-time Traffic Monitor
Traffic Monitor
Traditional QoS
• Bandwidth Limiter
• Bandwidth Monitor
Adaptive QoS
— Maximum Bandwidth Limiter Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN :
• PPPoE Relay
• IPSec
• SIP Pass-Through
• H.323 Pass-Through
• Static IP
• RTSP Pass-Through
• Automatic IP
• IPSec Pass-Through
• L2TP
• L2TP Pass-Through
• PPTP
• PPTP Pass-Through
• PPPoE
Internet Connection Type :
DDNS
DMZ
Port triggering
Port forwarding
3G / 4G LTE dongle
Dual WAN
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
LAN :
Manually Assign IP Address
Wake on LAN (WOL)
IPTV
DHCP Server
• Maximum Manually Assign IP Address Rule : 64
Wireless :
MU-MIMO
RADIUS Client
Universal Beamforming
Airtime Fairness
Wireless Scheduler
WiFi MAC Address Filter
UTF-8 SSID
• Maximum MAC Filters : 64
USB application :
• FAT32
• ext4
• ext3
• ext2
• vFAT
• NTFS
• HFS+
Samba Server
Shared Folder Privileges
FTP Server
Time Machine
Media Server
AiDisk
Download Master
AiCloud
Safely Remove Disk
User Interface :
APP: ASUS Router APP
WEB: ASUSWRT
Administration :
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
